Amigos Unite Details

Program Flow & Technology Reference

April 2026

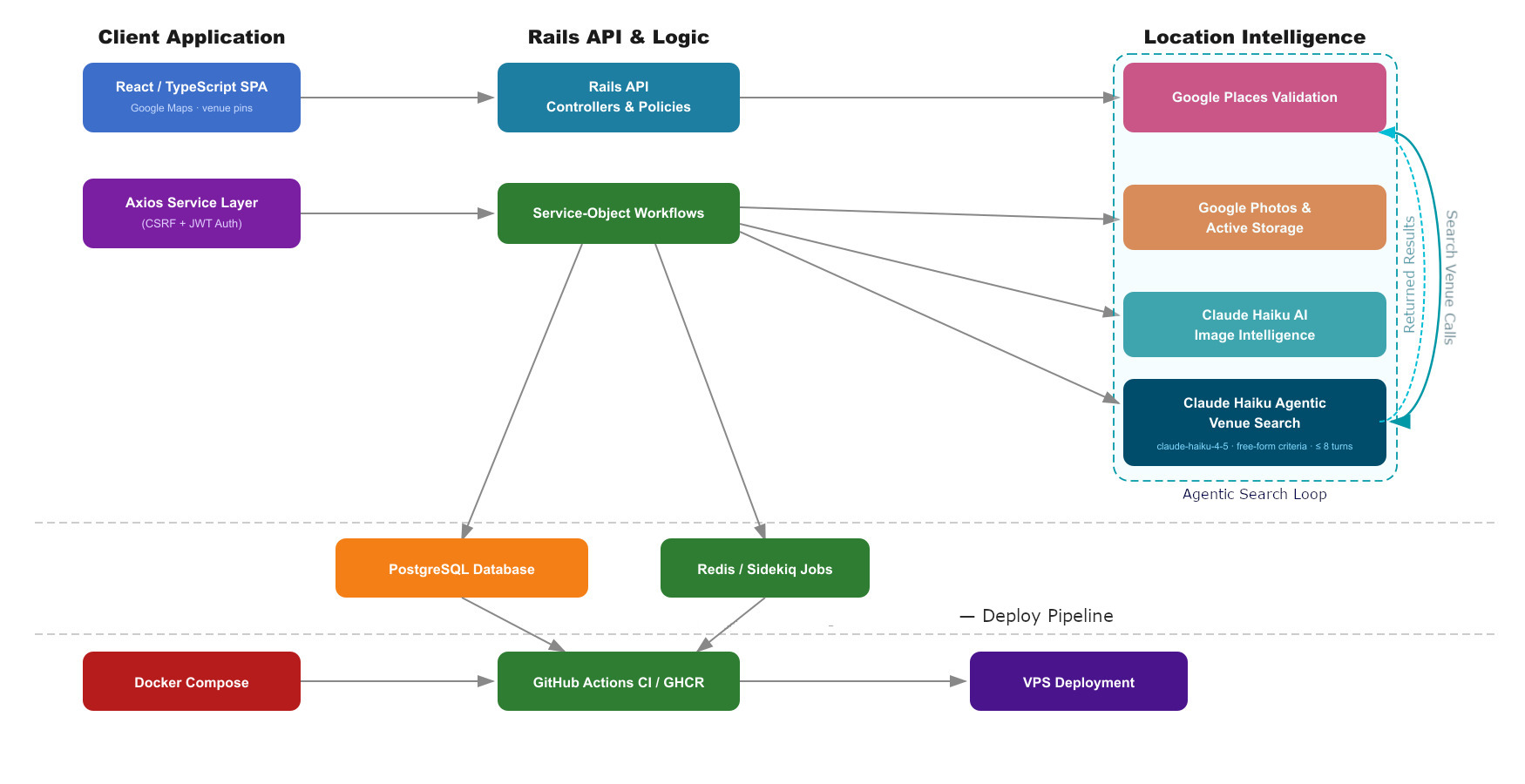

1. Overview

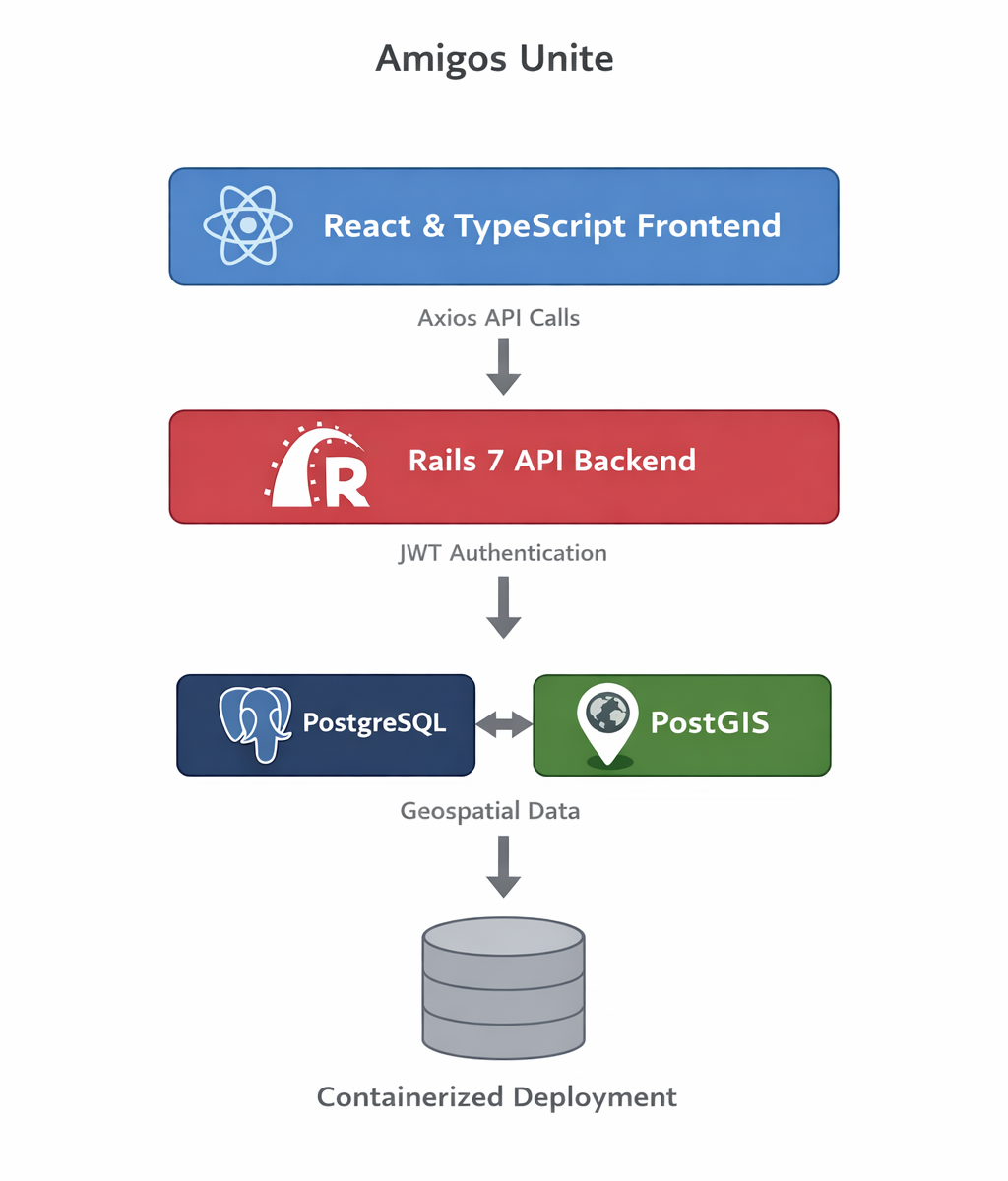

Amigos Unite is a full-stack event management platform built for social organizers. It lets any registered Amigo create and publish community events, search for venues using Google Maps and AI-assisted filtering, manage event staff through a role hierarchy, and track RSVPs. The platform is composed of two independent repositories that communicate exclusively over HTTPS.

The backend API (amigos_unite_api) is a Ruby on Rails 7.1 application running in API-only mode. It handles authentication, business logic, database persistence, background jobs, and all integrations with external services. The frontend (amigos_unite_app) is a React 18 / TypeScript / Vite single-page application. It communicates with the API via authenticated Axios requests, enforces CSRF protection, and renders a multi-step event creation wizard.

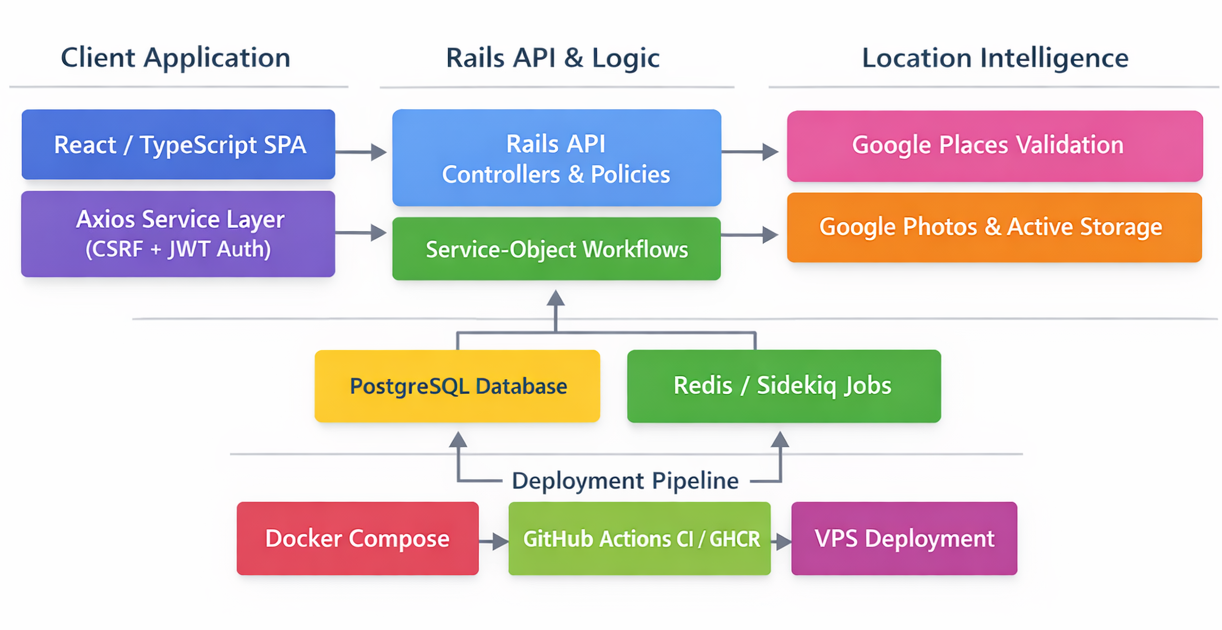

2. Technology Stacks

2.1 Backend — amigos_unite_api

The API is a Rails 7.1 application running on Ruby 3.2.2. It uses PostgreSQL 17 as its primary data store with the PostGIS adapter for optional geospatial queries. Background jobs run through Sidekiq backed by Redis.

Layer

Technology

Language

Ruby 3.2.2

Framework

Rails 7.1 (API-only mode, no asset pipeline)

Web Server

Puma 6 — multi-threaded, binds on port 3001

Database

PostgreSQL 17 with activerecord-postgis-adapter

Job Queue

Sidekiq 8 backed by Redis 7

Authentication

Devise 4.9 + devise-jwt — stateless JWT access tokens, refresh tokens stored in HTTP-only cookies

OAuth

OmniAuth with strategies for Google, Facebook, GitHub, LinkedIn

Serialization

ActiveModelSerializers 0.10 — JSON:API-style attribute adapters

Encryption

Lockbox + Blind Index — field-level encryption for PII (phone numbers, sensitive profile data)

File Storage

Rails Active Storage — local disk in dev, VPS-mounted volume in production

Image Processing

uby-vips + image_processing — resizing and format conversion

Virus Scanning

Clamby (ClamAV) — scans uploads before Active Storage attachment

Rate Limiting

Rack::Attack — per-IP throttles on auth and API endpoints

Google Places

Custom GooglePlaces::Client service using HTTParty — Nearby Search, Place Details, Geocoding, Photos

AI Filtering

Anthropic Claude Haiku 4.5 — filters venue candidates against user criteria via HTTParty POST

AI / Agentic

Anthropic SDK 1.36.0 — Claude Haiku 4.5 with tool use

Geocoding

Geocoder gem + GeocodableWithFallback concern — fills missing address fields on AmigoLocation and EventLocation save

Phone Validation

phonelib gem — E.164 normalization and carrier lookup

Geo / Country

countries gem — ISO 3166 lookups for country / state dropdowns

CORS

rack-cors — allows https://amigosunite.org in production, localhost:5173 in development

Testing

Rails 7.1 (API-only mode, no asset pipeline)RSpec-Rails 7.1 + FactoryBot + Faker

Build / CI

GitHub Actions — runs RSpec on PRs targeting main2 Frontend — amigos_unite_app

2.2 Agentic Venue Search — Claude Haiku

When an event organizer supplies free-text venue criteria (e.g. "cool vibes", "artsy with indoor seating", "good for a corporate mixer"), the API delegates the entire search to Claude Haiku 4.5 via the official Anthropic Ruby SDK (anthropic 1.36.0). Rather than pre-processing the criteria with hand-written keyword rules, Claude drives the search autonomously through an agentic tool-use loop.

Aspect

Detail

Model

claude-haiku-4-5-20251001

SDK

anthropic gem 1.36.0 (official Anthropic Ruby SDK)

Pattern

Agentic tool-use loop — Claude decides what to search, how many times, and when to stop

Tools exposed

search_venues (Google Places Text Search + Nearby Search fallback) and get_venue_details (Places Details by place_id)

Max turns

8 — safety cap on agentic iterations before the loop is forced to terminate

Output

Curated JSON array — each venue includes a criteria_matched count and a reason string explaining why it fits the organizer's criteria; results are ranked by criteria match then by Google rating

Safety net

Two-stage type filter: a pre-filter strips ineligible venues (hospitals, government offices, etc.) before Claude sees them; a post-filter re-checks using cached real Google Places types so Claude cannot bypass exclusions by altering the types field in its JSON output

Routing

Three-path coordinator: named-venue search (no AI) → agentic search (Haiku, when free-text criteria are present) → category search (no AI, when no criteria are given)

2.3 Frontend — amigos_unite_app

The frontend is a TypeScript React 18 single-page application bundled with Vite 7. It uses React Router v6 for client-side routing and Axios for all API communication.

Layer

Technology

Language

TypeScript 5.2 + React 18

Build Tool

Vite 7 — fast HMR in dev, ES module output for prod

Routing

React Router v6 — ProtectedRoute wrapper enforces auth

HTTP Client

Axios — privateApi instance with JWT bearer token injection, CSRF header management, and automatic token-refresh on 401

Styling

SCSS / Sass — compiled to CSS; BEM methodology; multi-theme palette system (public + admin)

Maps

LocationPickerMap component — renders Google Maps via Maps JavaScript API; Places Nearby Search results shown as pins

Linting

ESLint with TypeScript, react-hooks, and jsx-a11y plugins

Type Checking

GitHub Actions — runs lint + typecheck on PRs targeting main

Testing

GitHub Actions — runs lint + typecheck on PRs targeting main

2.4 Infrastructure & Deployment

Both repos are deployed to a single VPS (Ubuntu, managed by Hetzner) using Docker Compose. Nginx runs on the host as a reverse proxy and terminates TLS via Let's Encrypt.

Layer

Technology

Host OS

Ubuntu 22.04 LTS on Hetzner VPS

Container Runtime

Docker (CLI v2 plugin) — no docker-compose binary; uses `docker compose

API Containers

api (Puma) + sidekiq — both use the same ghcr.io image built on main

Frontend Container

Nginx serving the Vite static build on port 8080

Database

postgres:17 container with volume mount at /opt/amigos_unite_api/data/postgres

Cache / Queue

redis:7-alpine with AOF persistence at /opt/amigos_unite_api/data/redis

Reverse Proxy

Nginx on host — routes /api/* to localhost:3001, all other traffic to localhost:8080

TLS

Let's Encrypt / Certbot — auto-renewing certificates for amigosunite.org

Registry

GitHub Container Registry (ghcr.io) — Docker images pushed on merge to main

CI/CD

GitHub Actions — backend-ci (RSpec) + frontend-ci (tsc + lint) on PRs; deploy workflow SSHes to VPS on merge to main and runs 'docker compose pull && docker compose up -d'

Secrets

GitHub Actions Secrets — RAILS_MASTER_KEY, VPS_SSH_KEY, GHCR credentials

Firewall

ufw — ports 22, 80, 443 open; 3001 and 8080 bound to 127.0.0.1 only

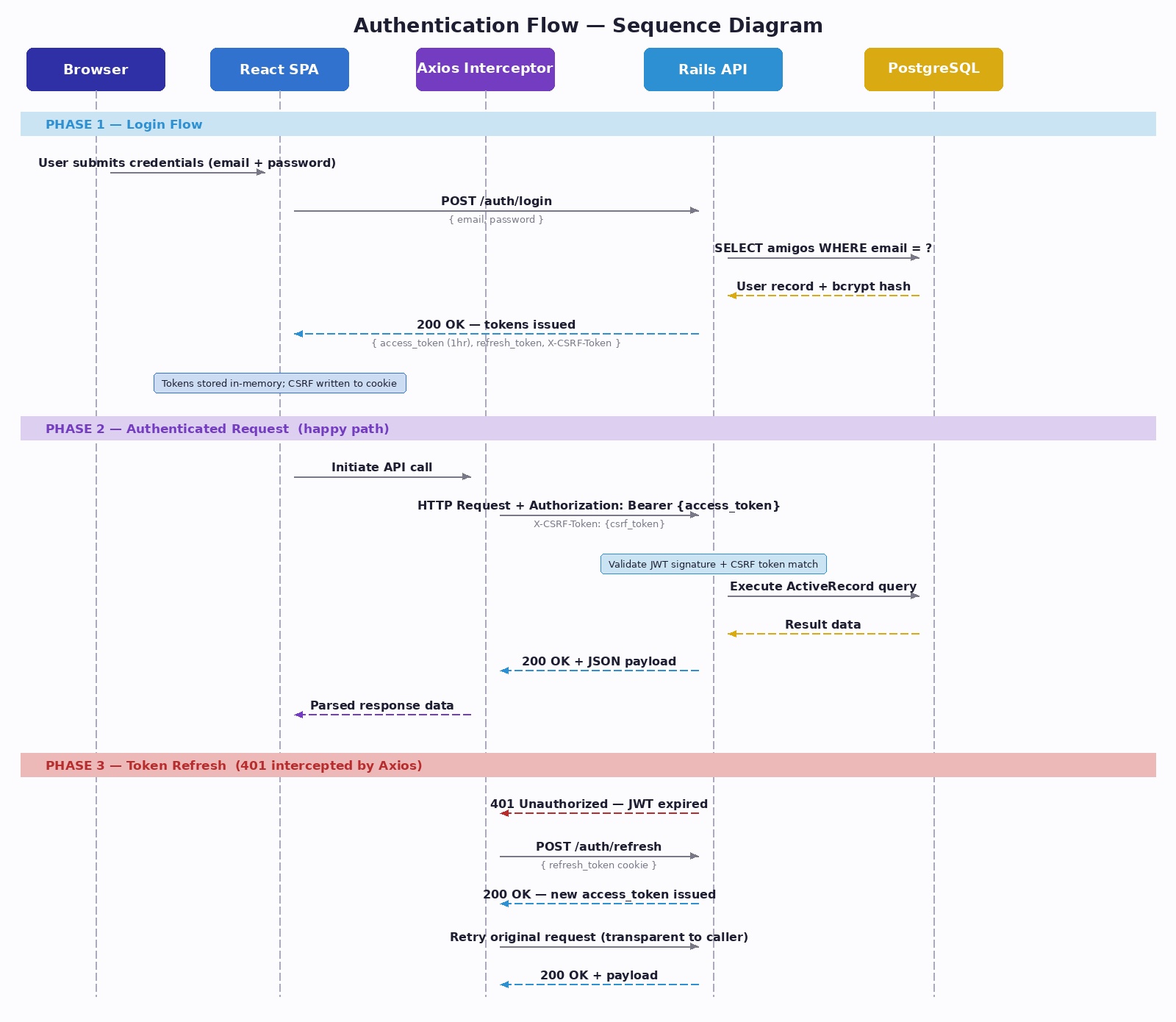

3 Authentication Flow

Authentication is stateless. The API issues short-lived JWT access tokens on login and stores long-lived refresh tokens in HTTP-only cookies. The frontend holds the access token in memory (Authorization header) and retries automatically when it expires.

Step

Actor / Layer

Action

Browser → API

POST /api/v1/login with email + password (or OAuth callback)

API (Devise-JWT)

Validates credentials, issues access JWT (sub = amigo.id, exp = 1 hour), sets refresh token in HTTP-only cookie

Browser

Stores access token in memory via privateApi.defaults.headers; also persisted to localStorage as fallback

Browser → API

Every subsequent request includes Authorization: Bearer <token> header

API (authenticate_amigo!)

Decodes JWT, loads Amigo from sub claim, sets current_amigo

Access token expires

privateApi interceptor catches 401, POSTs /api/v1/refresh_token with cookie

API (refresh_token)

Validates refresh token, issues new access JWT, returns in response body

Browser

Updates Authorization header and retries the original failed request

Refresh also fails

triggerAuthRequired() opens login modal; all credentials are cleared

4. Event Management Flow

4.1 Creating an Event

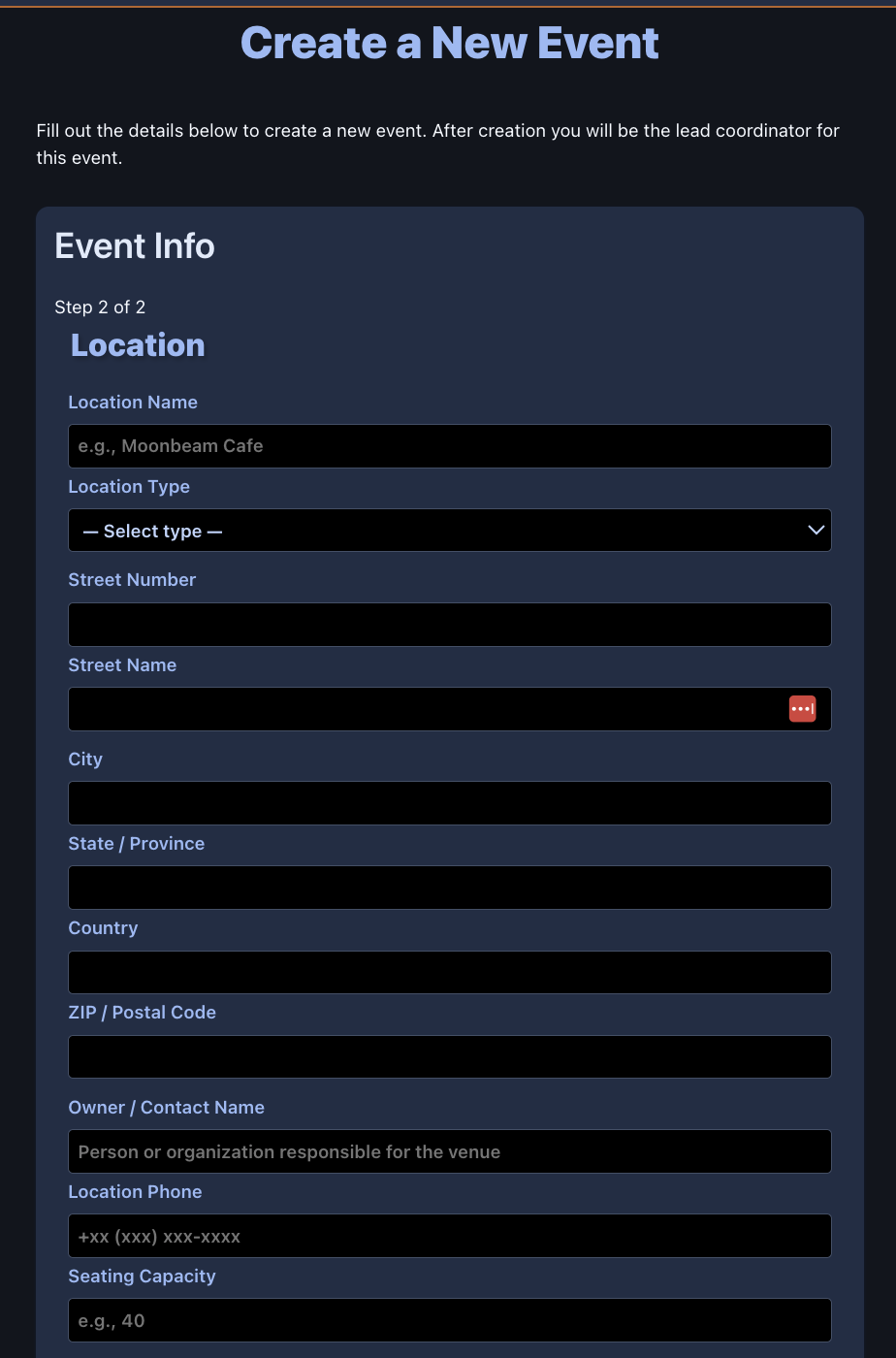

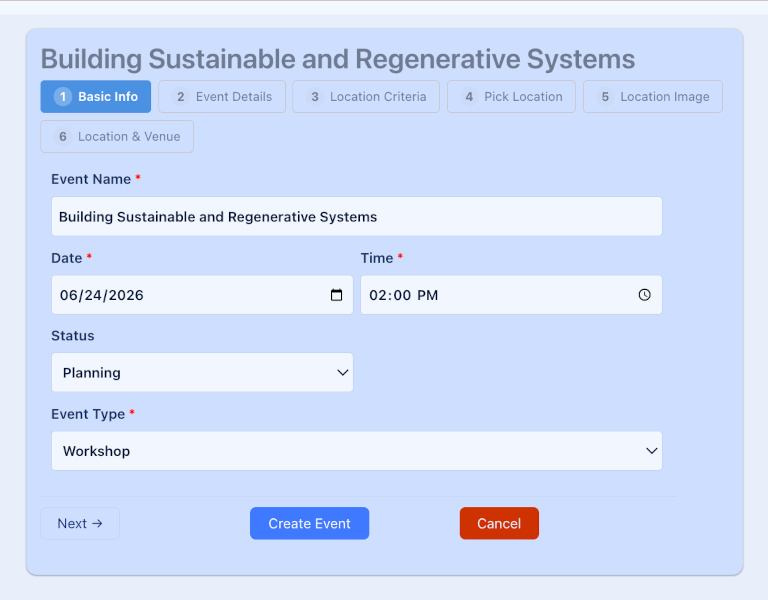

EventForm is a seven-step wizard rendered by CreateEventPage. Steps 1-2 capture core event details, steps 3-6 are the location search and venue selection workflow, and step 7 is only shown in edit mode for staff management. On the final step the form calls onSubmit which invokes EventService.createEvent.

Step

Actor / Layer

Action

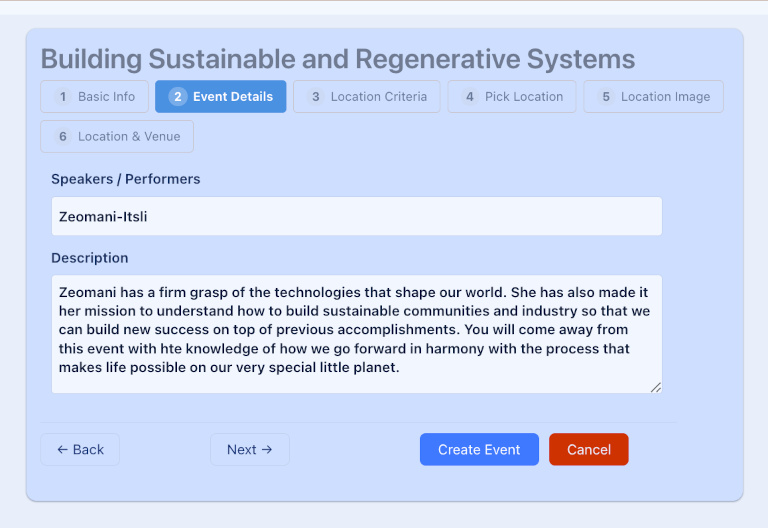

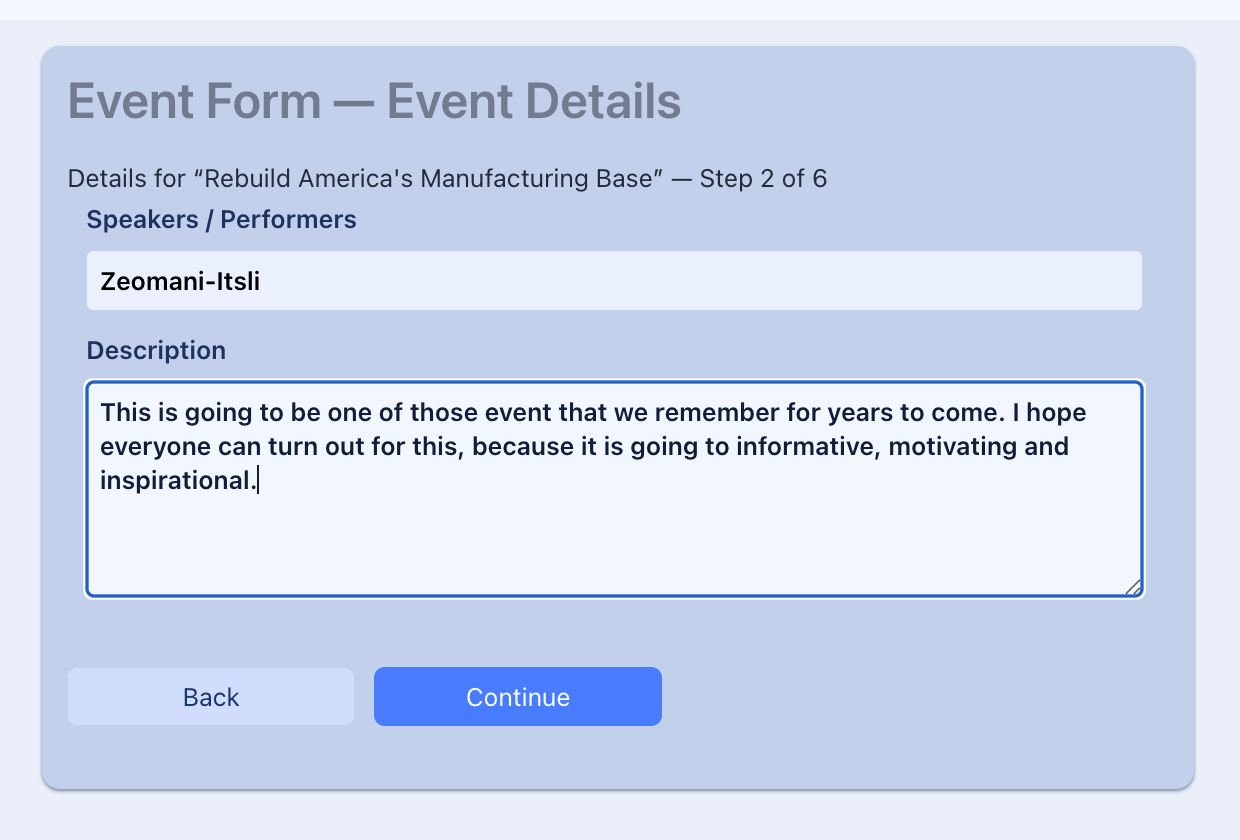

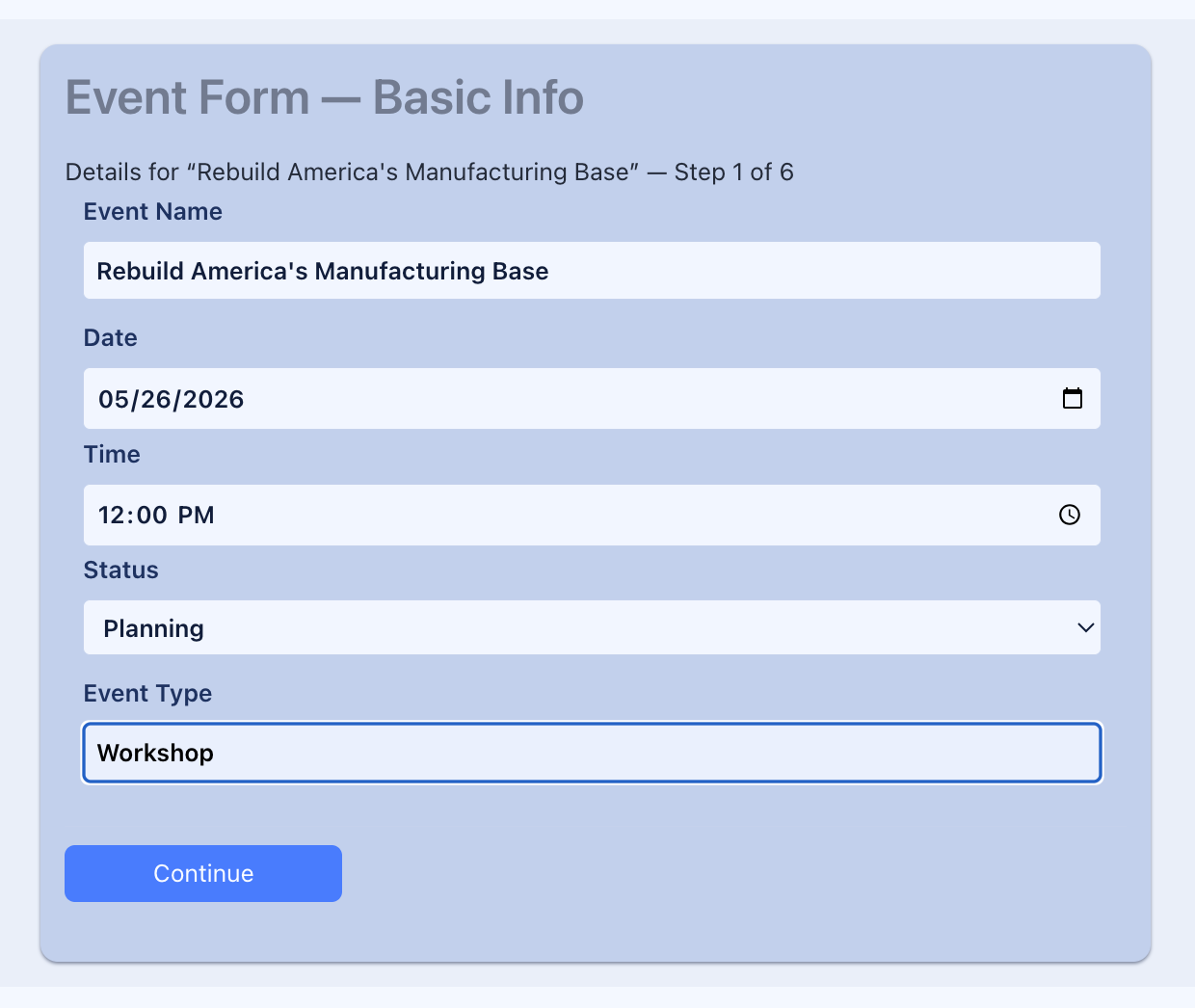

Amigo (Step 1-2)

Fills event name, date, time, type, description, status, and optional speakers / performers

Amigo (Steps 3-5)

Enters city + criteria; AI location search fetches Google Maps candidates and filters them through Claude Haiku; Amigo selects a map pin and picks a venue photo

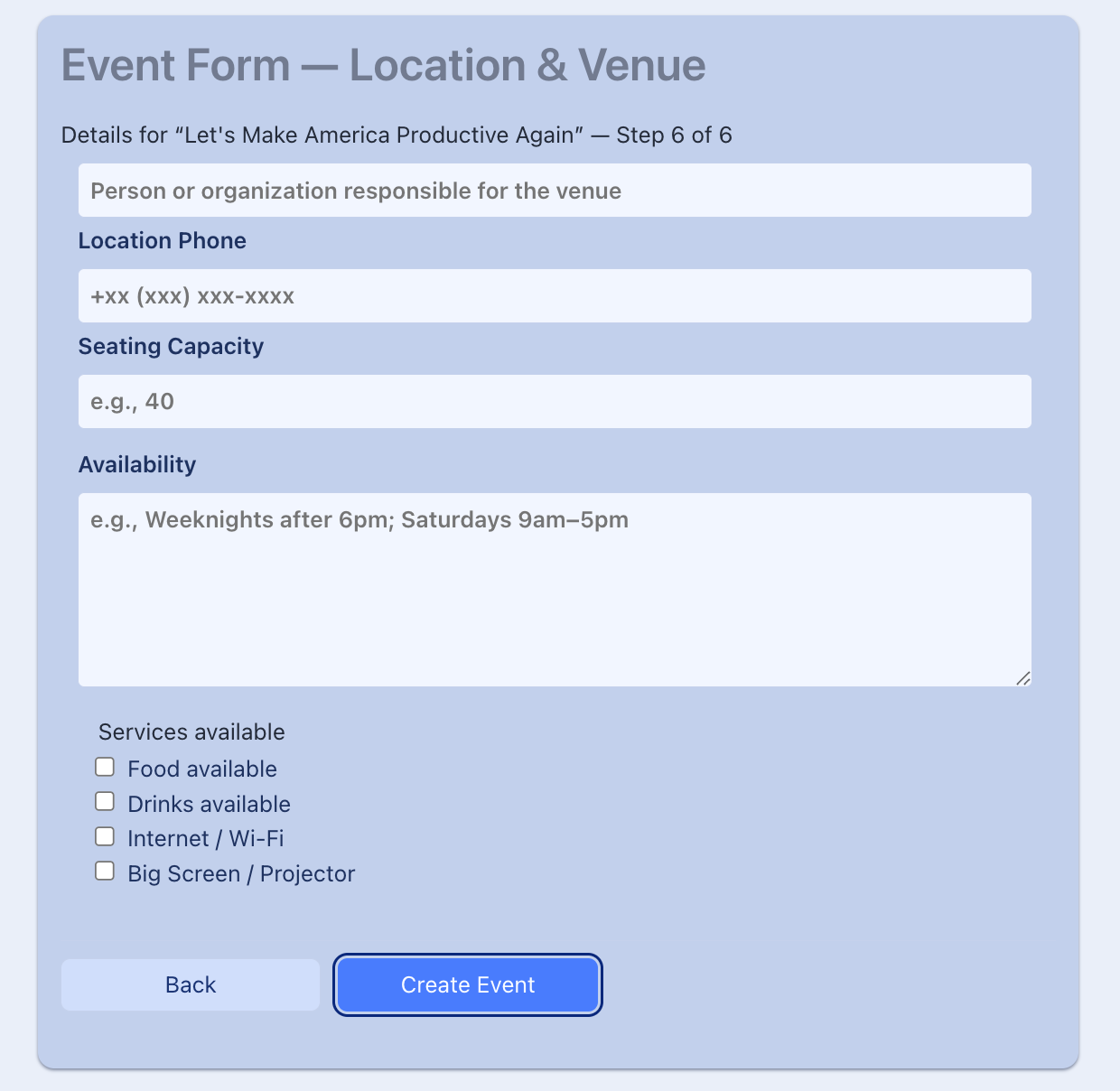

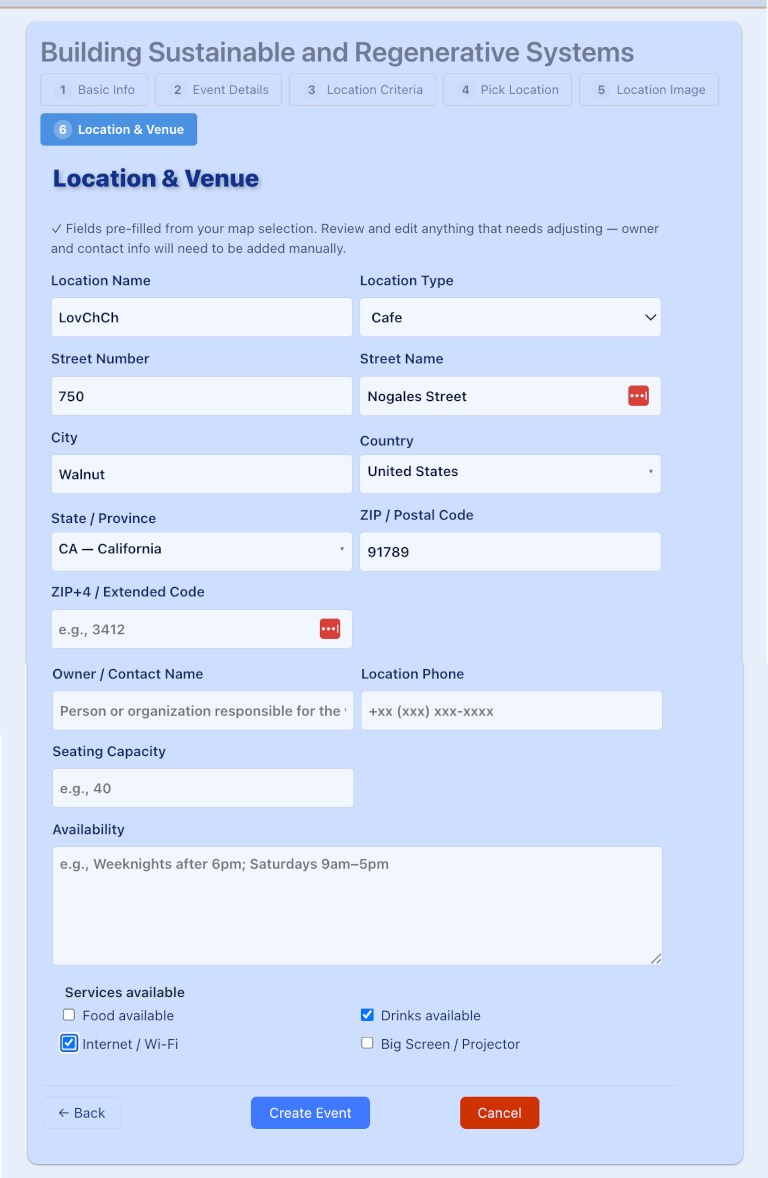

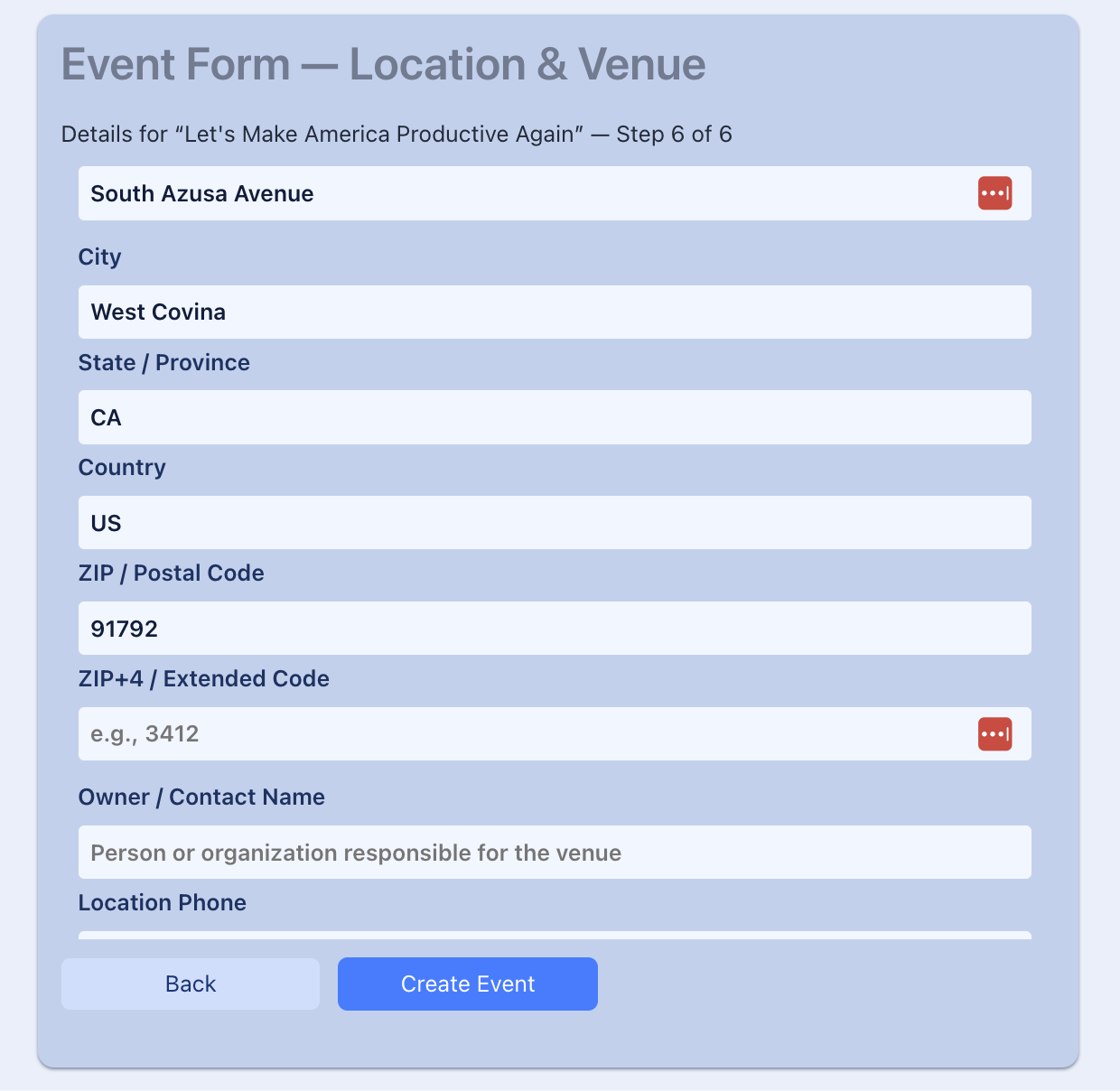

Amigo (Step 6)

Reviews and edits pre-filled address details populated from Google Places Details API

Browser → API

POST /api/v1/events with event + nested location attributes

API (EventPolicy)

create? checks that current_amigo is present

API (Events::CreateEvent)

Creates Event record with lead_coordinator = current_amigo; creates EventAmigoConnector (role: lead_coordinator); optionally calls Events::UpsertPrimaryLocation

API → Browser

Returns EventSerializer JSON (includes primary_event_location)

Browser

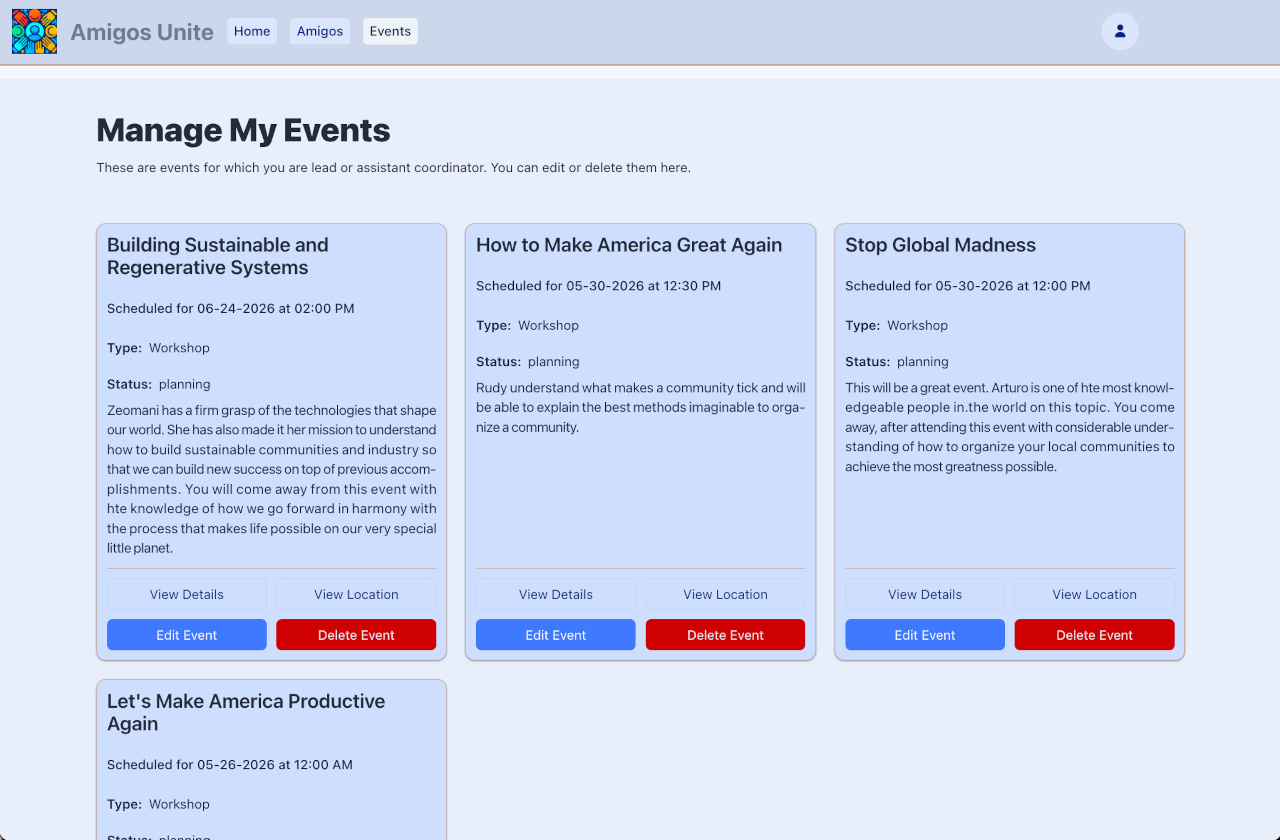

Navigates to My Events page

4.2 Editing an Event

EditEventPage loads the event and its connectors in parallel. EventForm is pre-populated from both. On edit the wizard includes an optional Step 7 (Manage Staff). If the event already has a location, steps 3-5 show a 'Keep current location' shortcut that jumps directly to step 6, making re-entry of location criteria optional.

Step

Actor / Layer

Action

Browser → API

GET /api/v1/events/:id — loads event + primary_event_location

Browser → API

GET /api/v1/events/:id/event_amigo_connectors — loads staff roster

Amigo

Edits any fields across steps 1-6; may skip location steps if venue unchanged

Browser → API

PATCH /api/v1/events/:id with updated attributes

API (EventPolicy)

update? allows lead coordinator or assistant coordinator

API (EventsController)

Runs inside a transaction; handles optional lead transfer and location upsert

API (GeocodableWithFallback)

Before saving EventLocation, Geocoder fills missing postal code / state / country if sufficient address is present

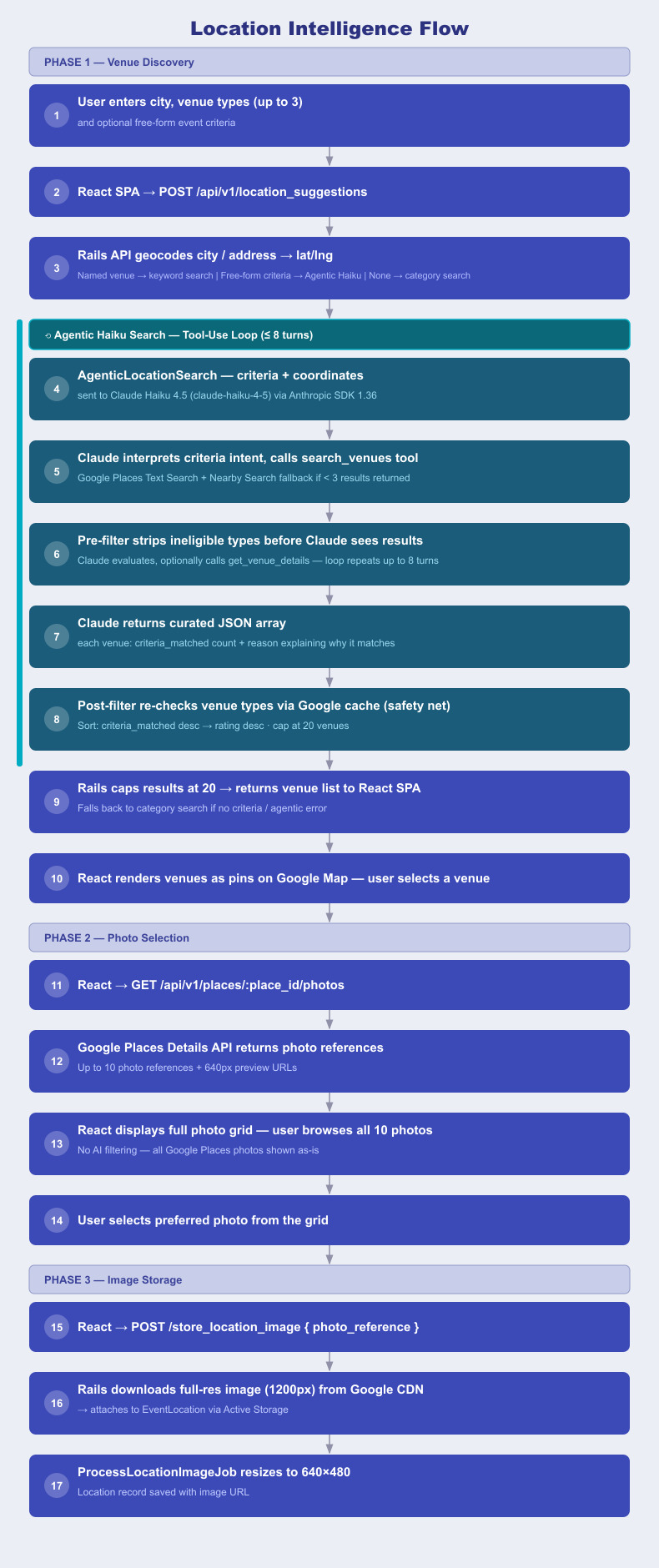

5. Location Intelligence Flow

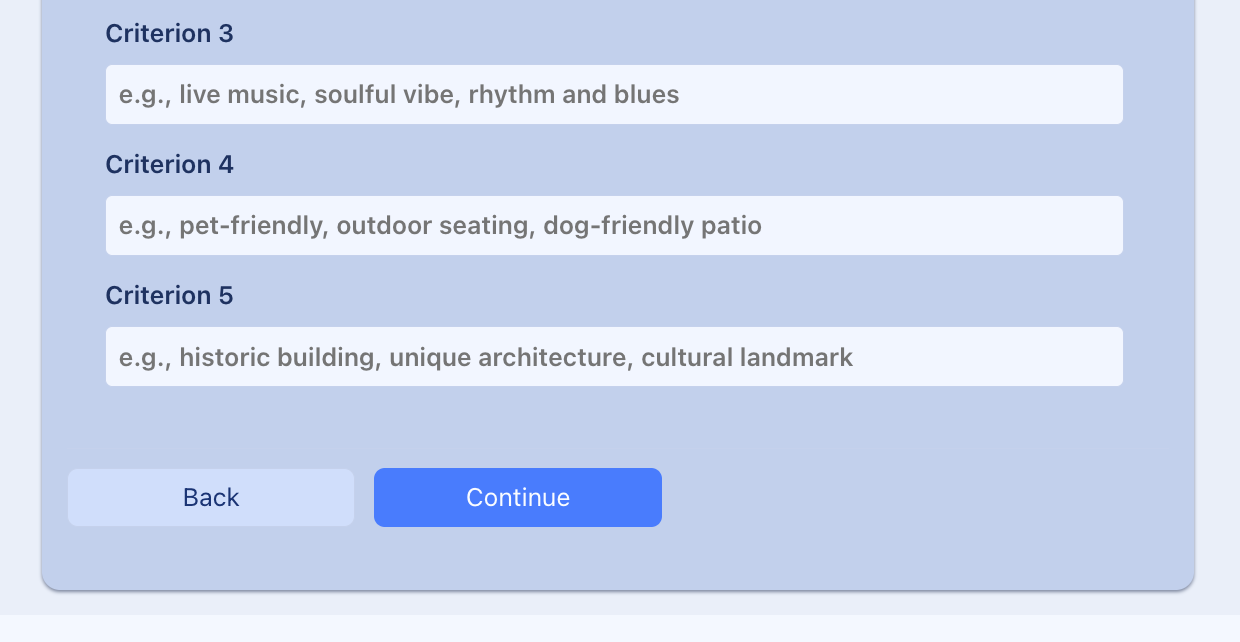

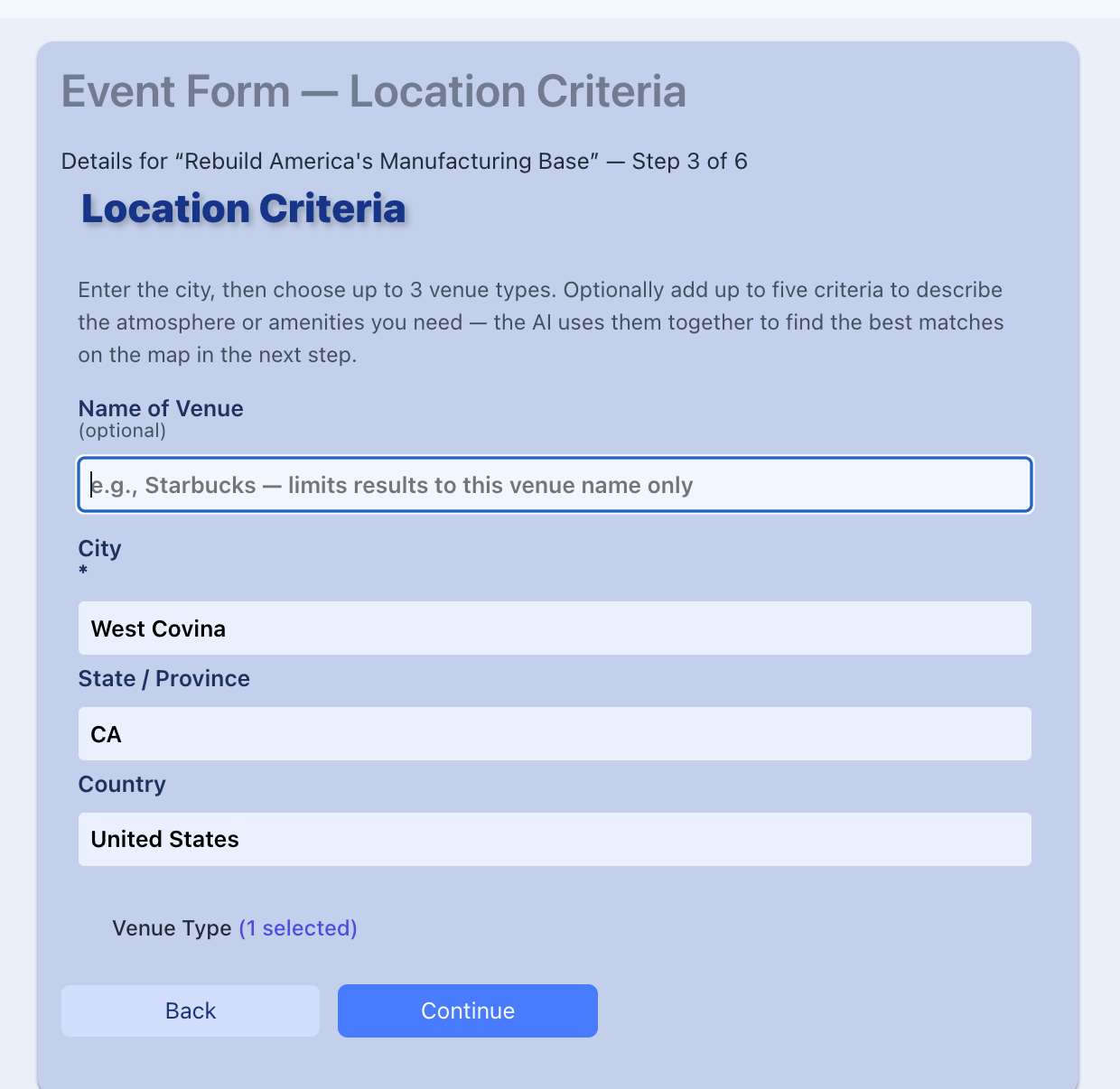

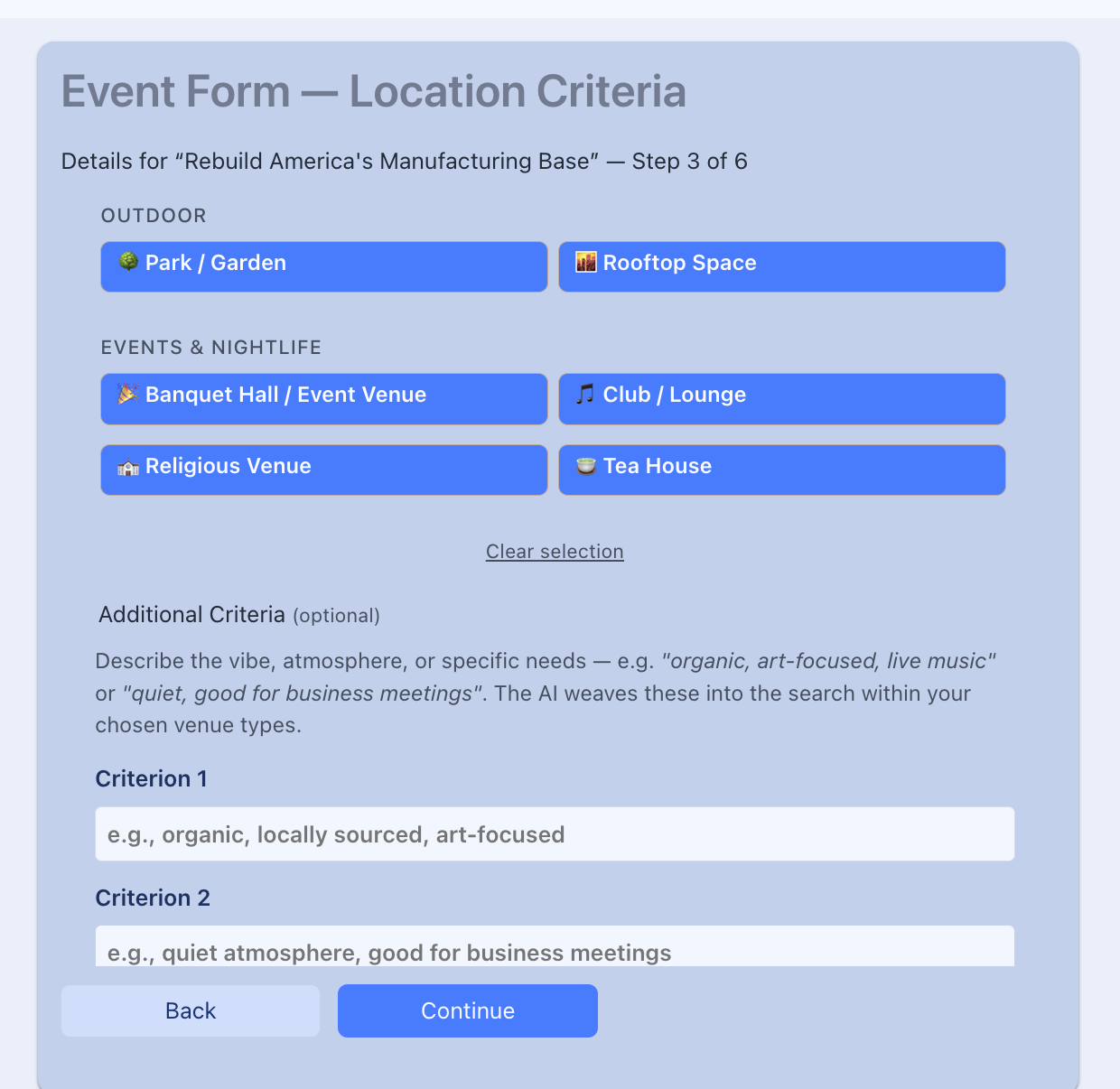

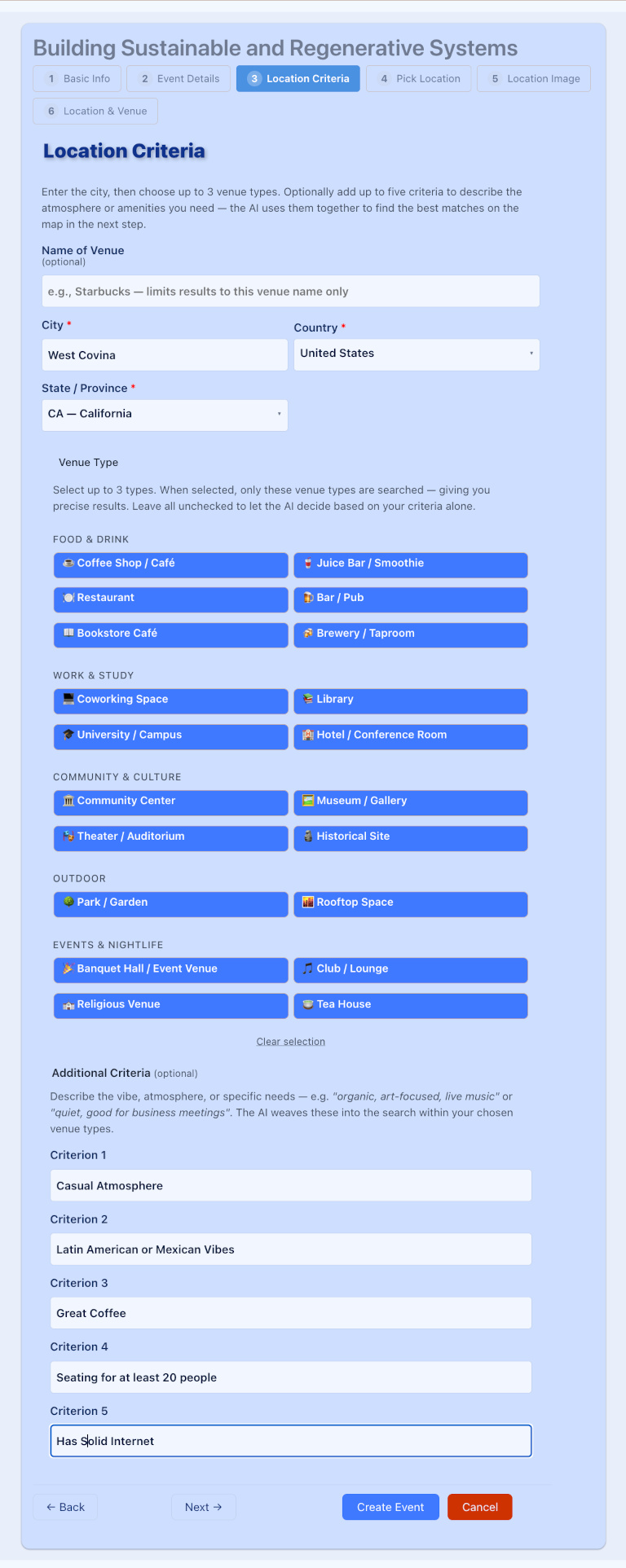

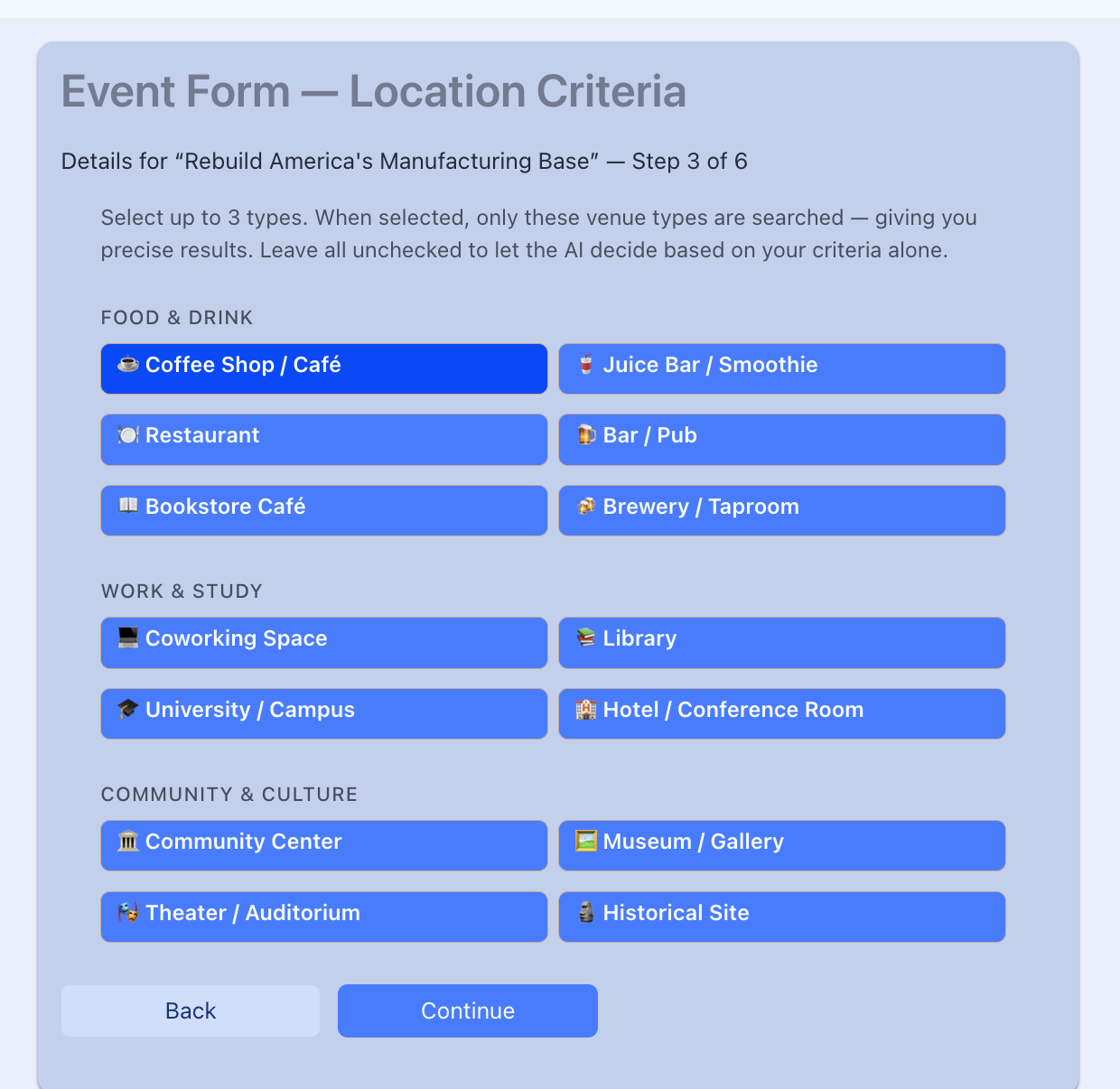

Step 3 of the event form collects a city, optional venue name, up to three venue category buckets, and up to five free-text criteria. This drives a two-step server-side search combining Google Places and Claude AI.

Step

Actor

Action

Browser (React SPA)

User enters city, up to 3 venue types, and optional free-form event criteria (e.g. "cool vibes", "quiet with WiFi")

Browser → API

POST /api/v1/location_suggestions with city, venue_types[], criteria[], optional venue_name, lat/lng, event_start_time

API (AiLocationSuggestions)

Geocodes city to lat/lng if not provided (Geocoder gem → Google Geocoding API). Routes request by input type: venue_name present → keyword search path; criteria present → Agentic Haiku path; neither → category Nearby Search path

API (AgenticLocationSearch → Claude Haiku 4.5)

Free-form criteria and coordinates are passed to AgenticLocationSearch, which opens an agentic tool-use loop with Claude Haiku 4.5 (claude-haiku-4-5) via the Anthropic Ruby SDK 1.36. Claude receives a system prompt containing the organizer's numbered criteria, the search area, and two tool definitions: search_venues and get_venue_details

Claude Haiku ↔ Google Places API

Claude autonomously formulates search queries from the criteria intent and calls the search_venues tool. Each call triggers a Google Places Text Search (semantic intent matching); if fewer than 3 results are returned, a Nearby Search runs as a fallback. Results from both are merged and deduplicated by place_id

API (pre-filter) → Claude Haiku (evaluate)

Before results are returned to Claude, a pre-filter removes ineligible venue types (hospitals, banks, government offices, etc.) and caches real Google Places types by place_id. Claude evaluates the eligible results; if address detail is needed for a specific venue it calls get_venue_details. Claude may repeat the loop — calling search_venues again with different query angles — up to a hard cap of 8 turns

Claude Haiku → API

When satisfied, Claude ends the loop (stop_reason: end_turn) and returns a raw JSON array. Each element contains place_id, name, formatted_address, rating, types, a criteria_matched count (how many of the organizer's criteria are likely met), and a reason string explaining the match per criterion

API (post-filter + sort)

A post-filter re-checks every venue's types against the cached real Google Places data — preventing Claude from bypassing exclusions by omitting or altering the types field in its JSON output. Results are sorted by criteria_matched descending, then by rating descending, and capped at 20 venues

API → Browser

Returns up to 20 venue objects with place_id, name, formatted_address, lat/lng, rating, types, criteria_matched, and description (the reason string). Falls back to a category-based Nearby Search if no criteria were provided or if the agentic call fails

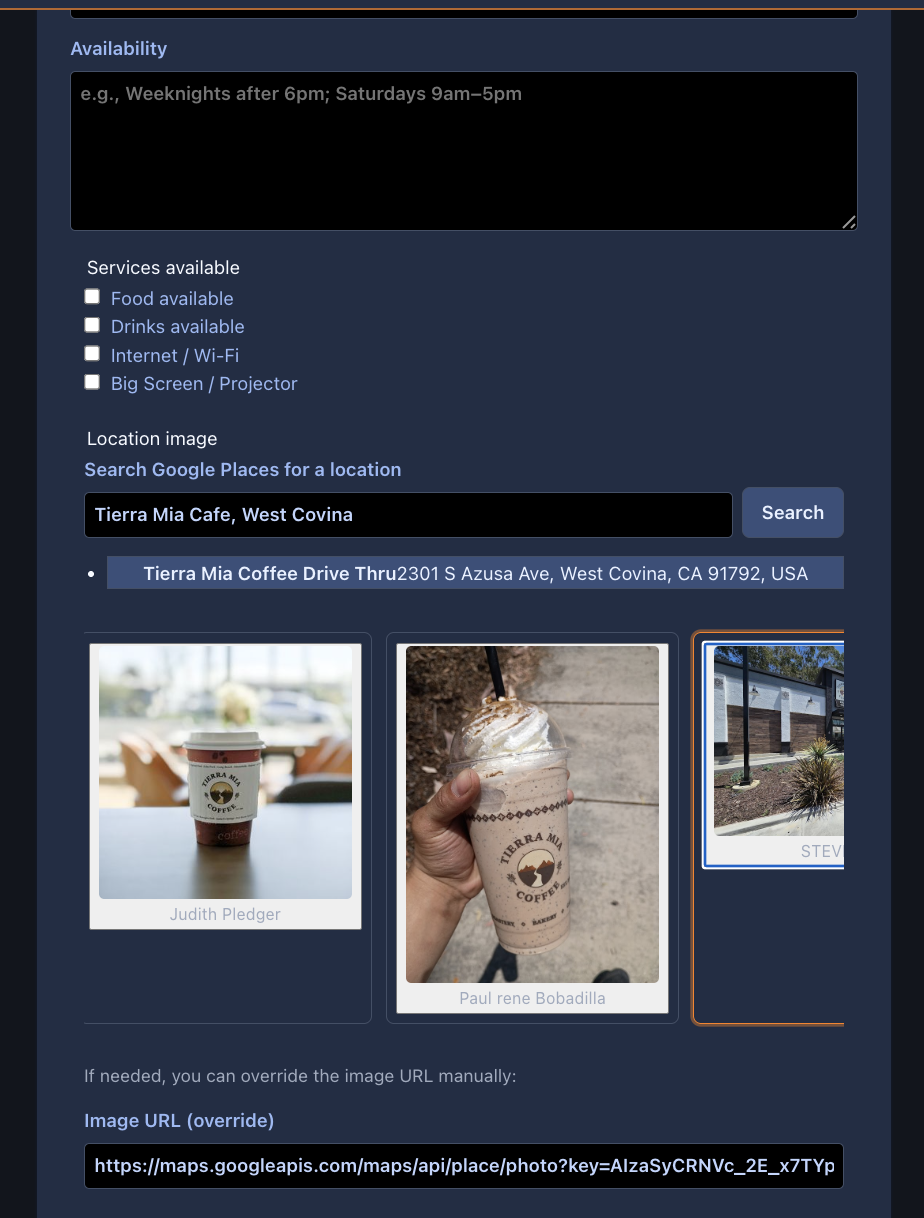

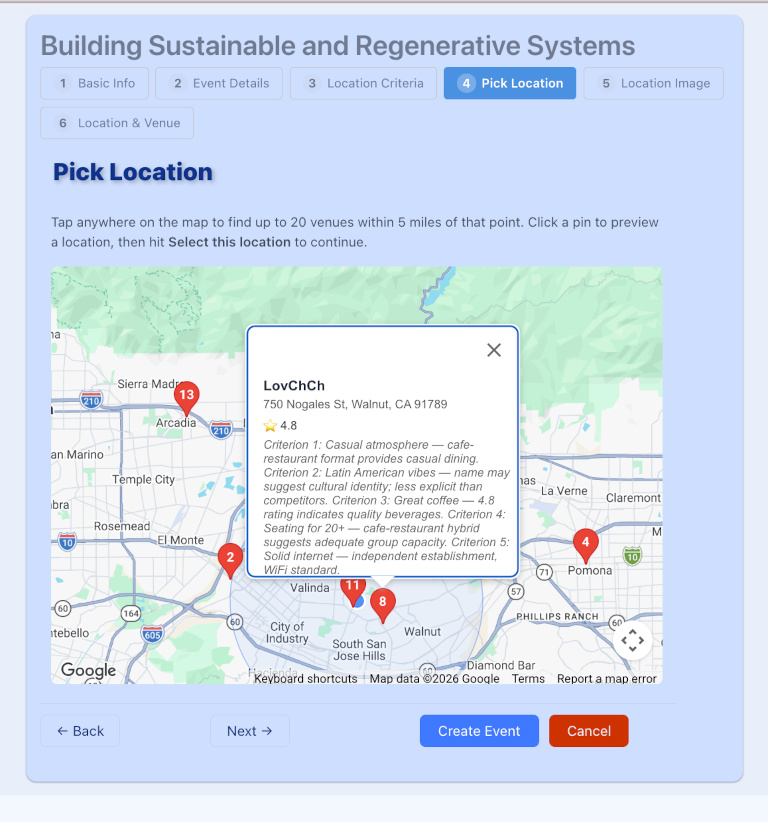

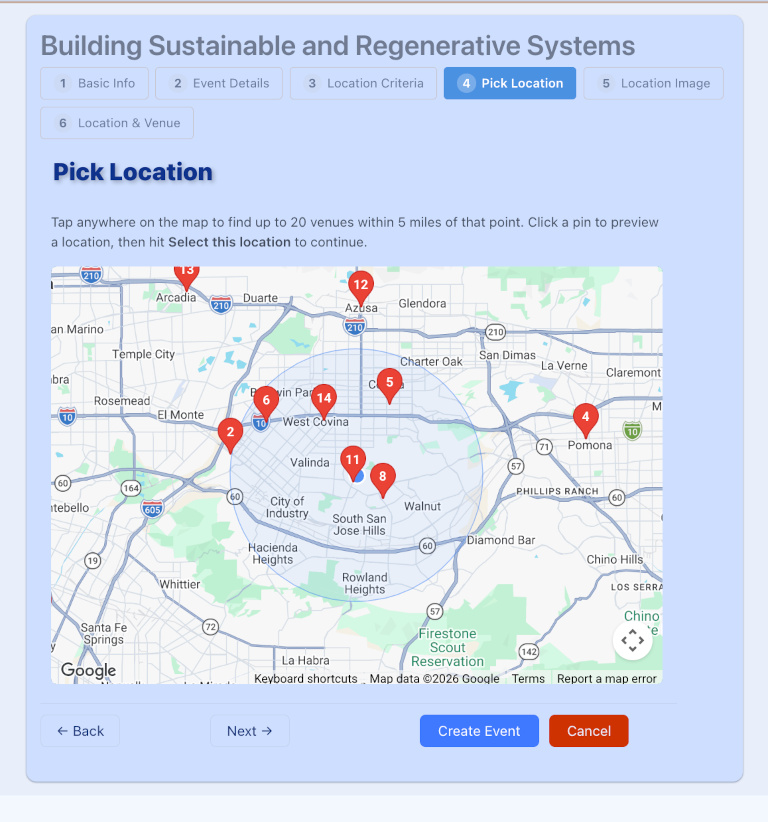

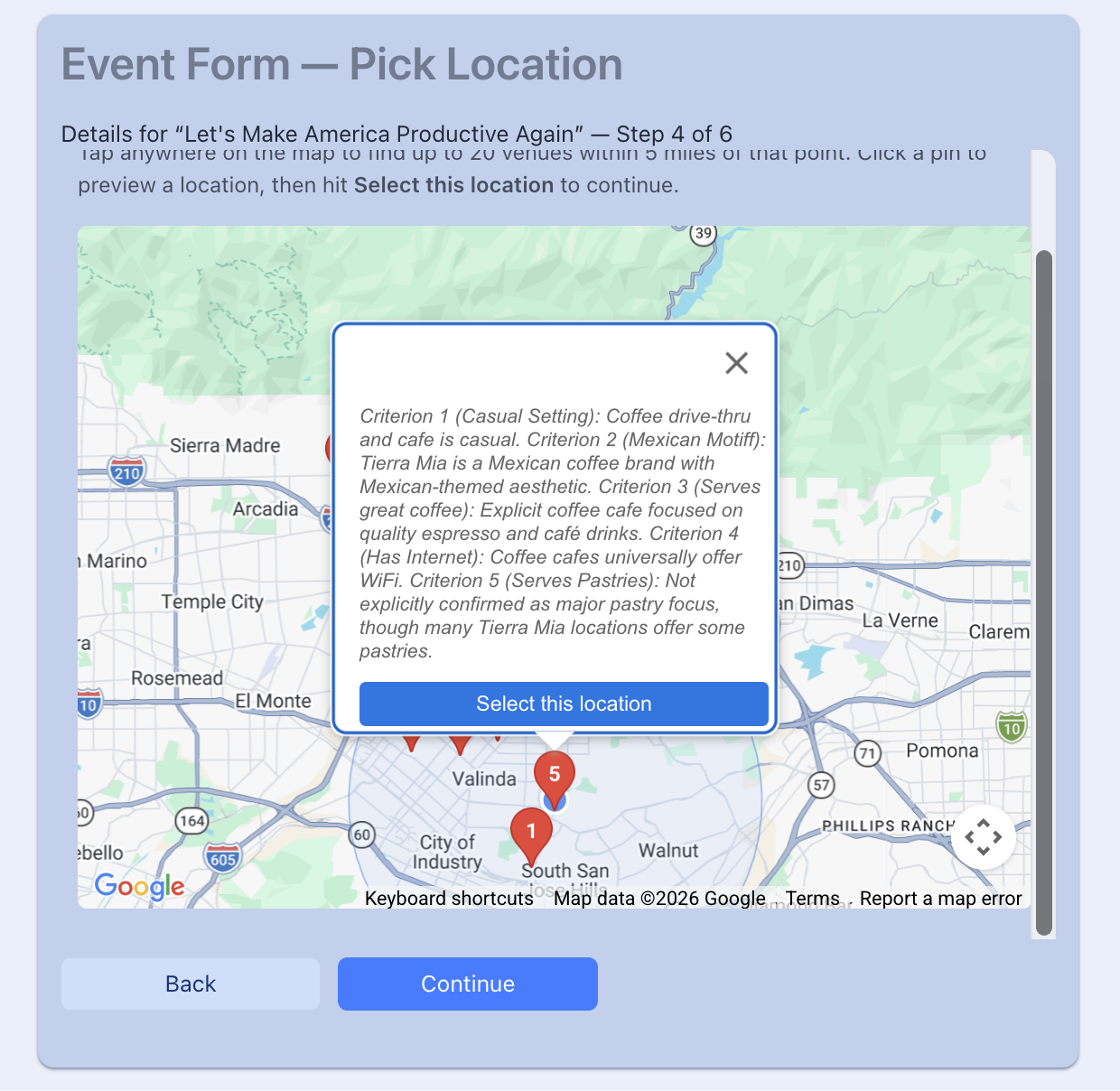

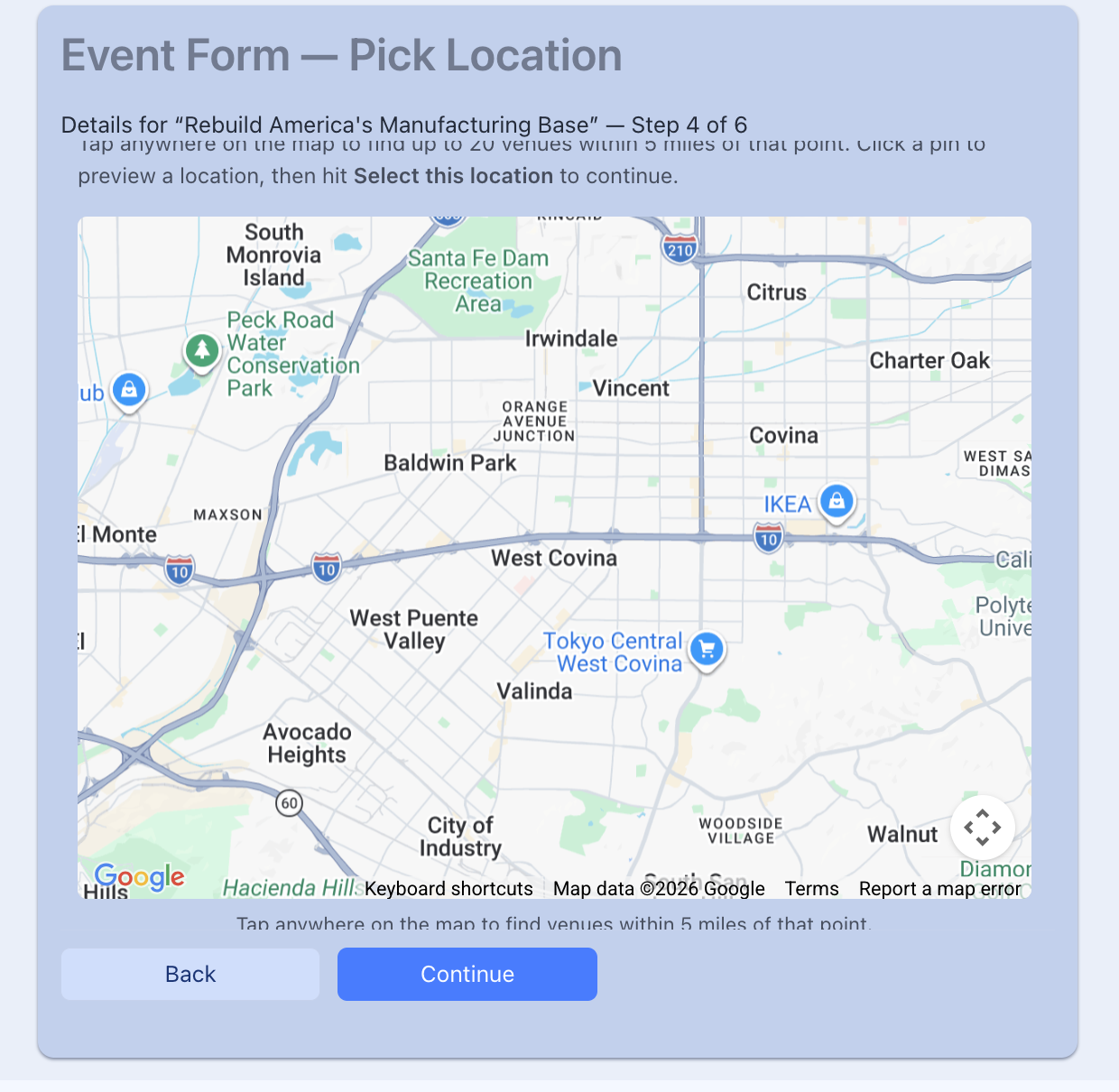

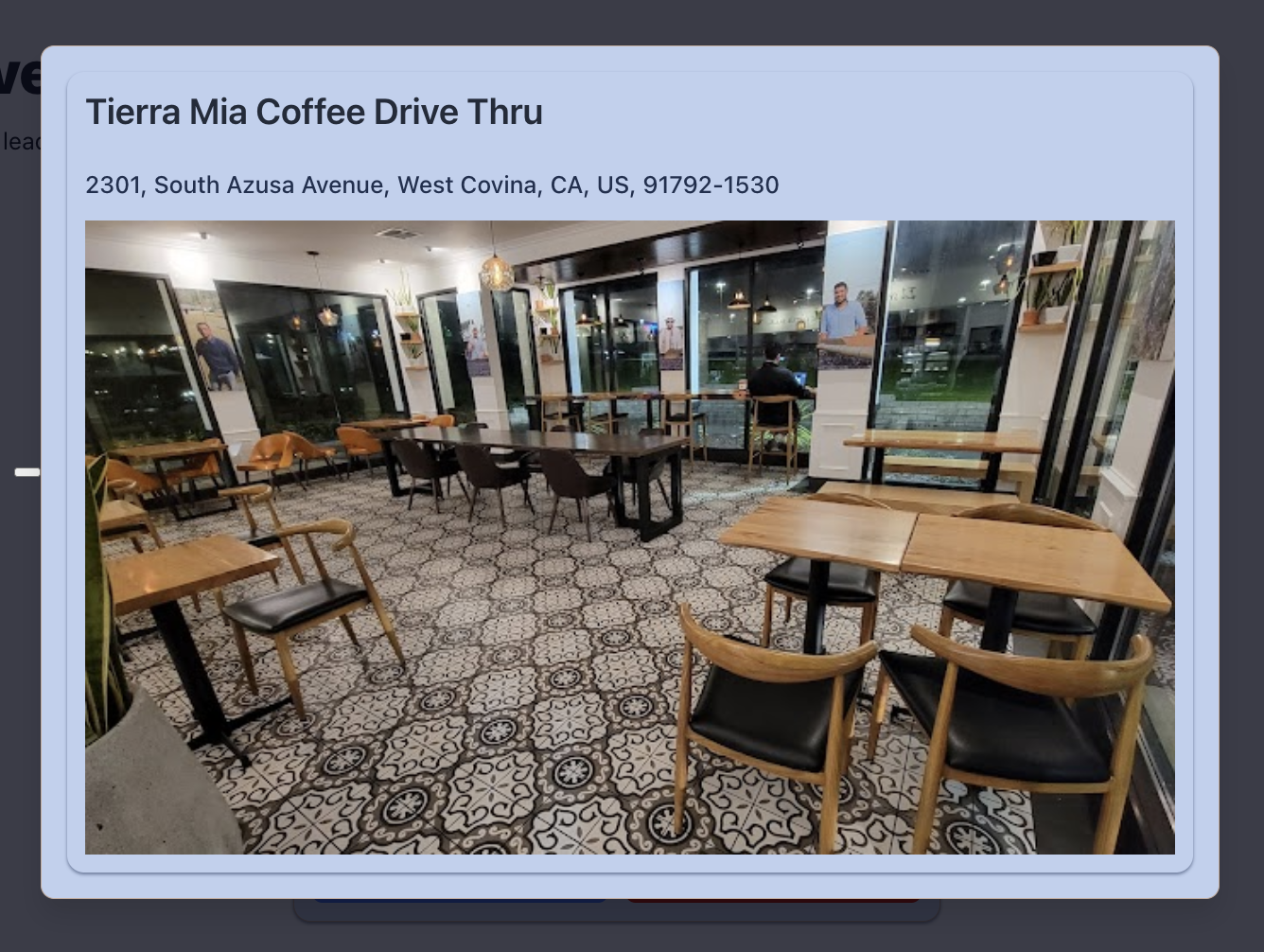

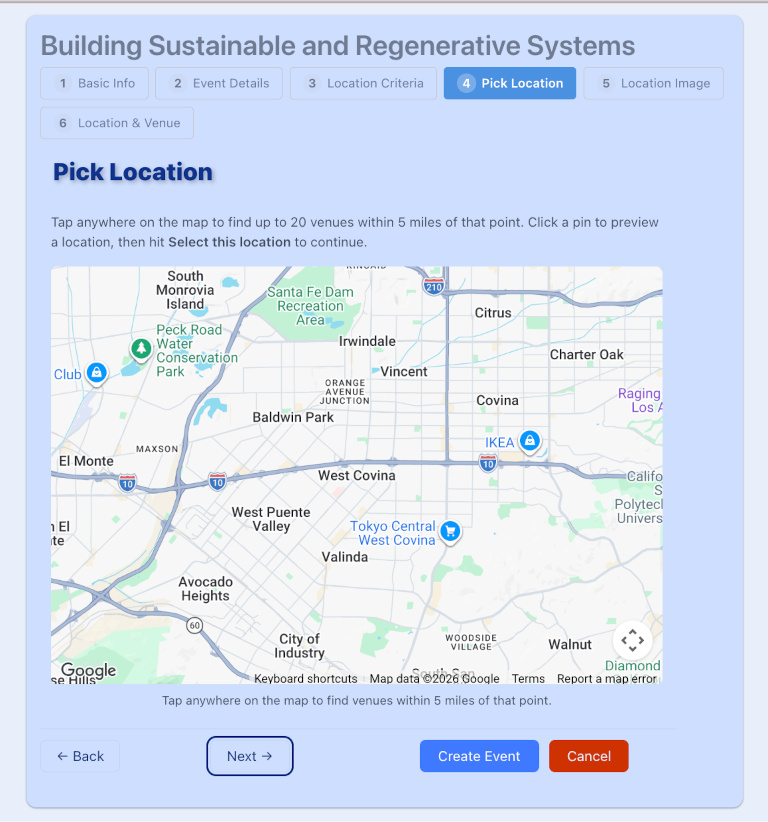

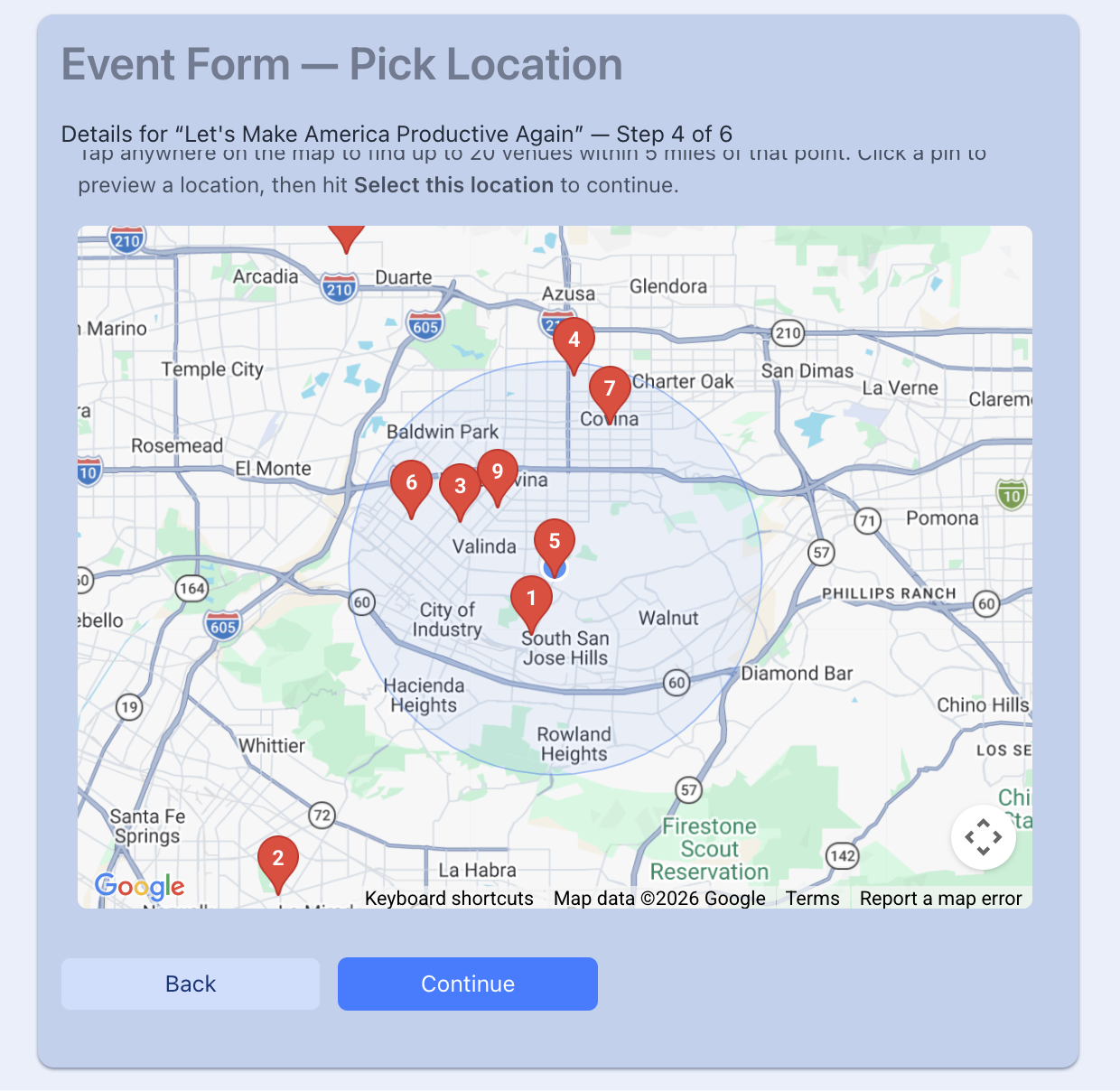

Browser (React + Google Maps)

Renders each venue as a push pin on a Google Maps JavaScript API instance. The Amigo selects a pin to view the venue's name, rating, and match reason

Browser → API

GET /api/v1/places/:place_id/photos — requests photo references for the selected venue

API → Google Places Details

Calls Google Places Details API; returns up to 10 photo references with 640px preview URLs

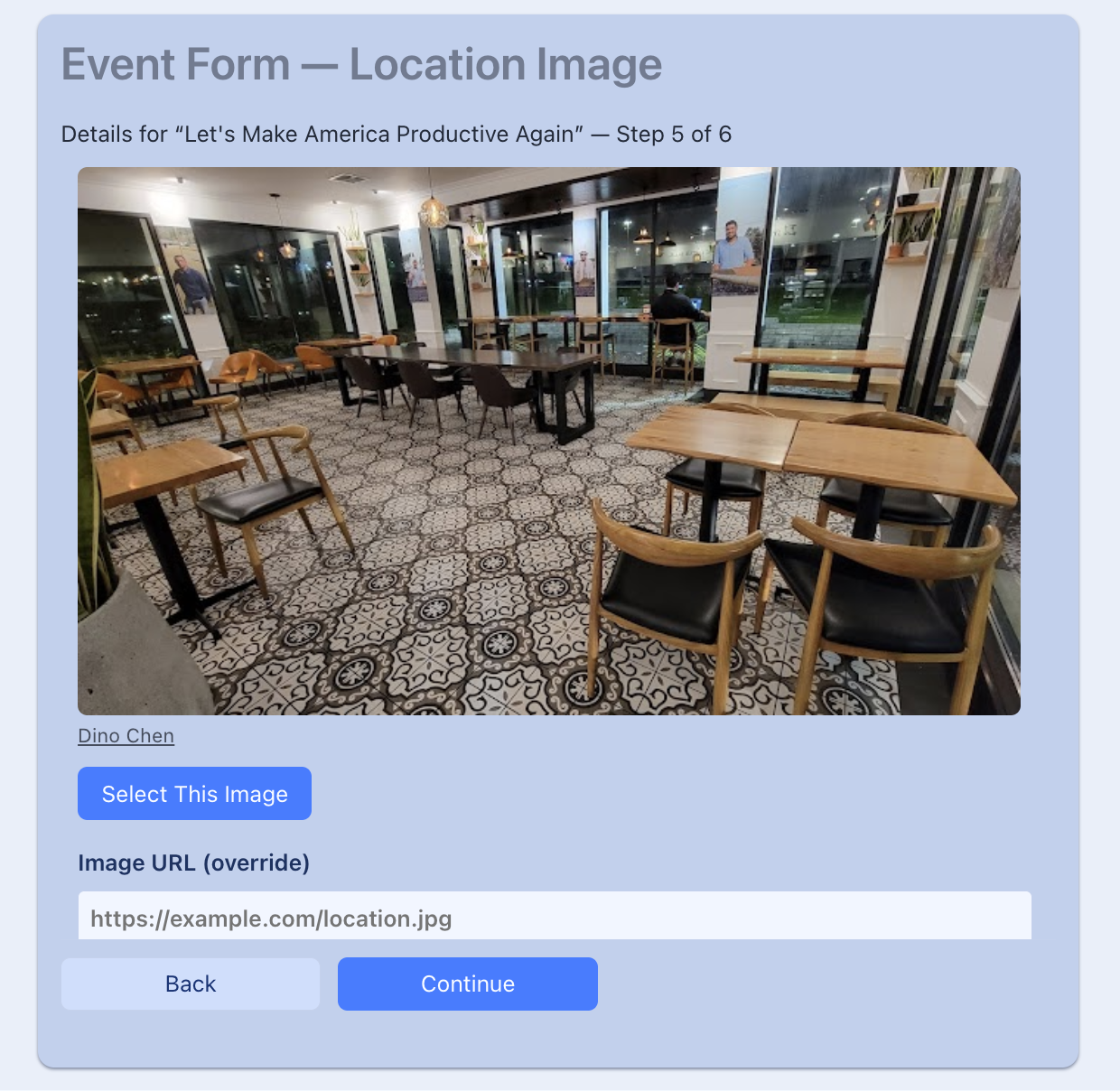

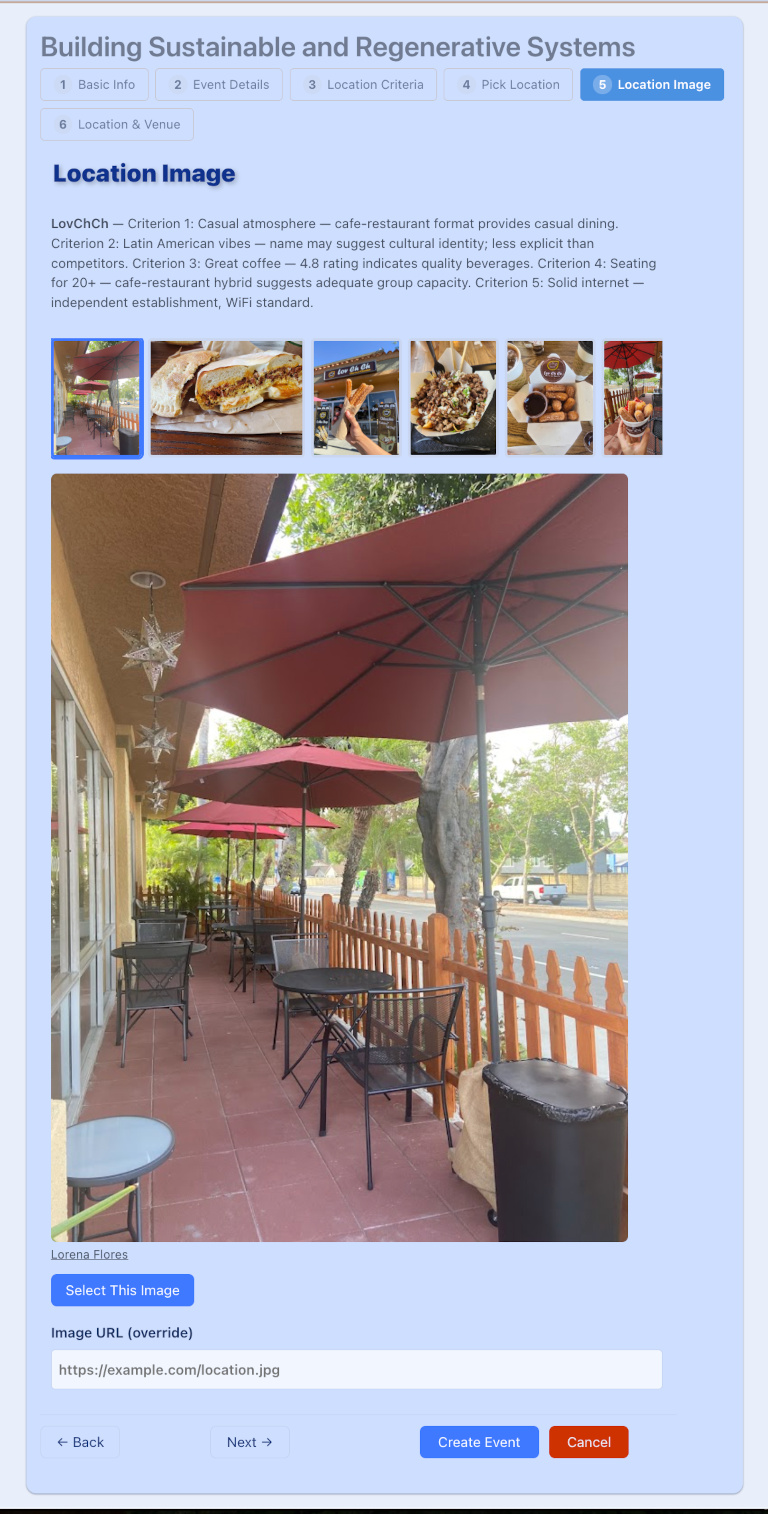

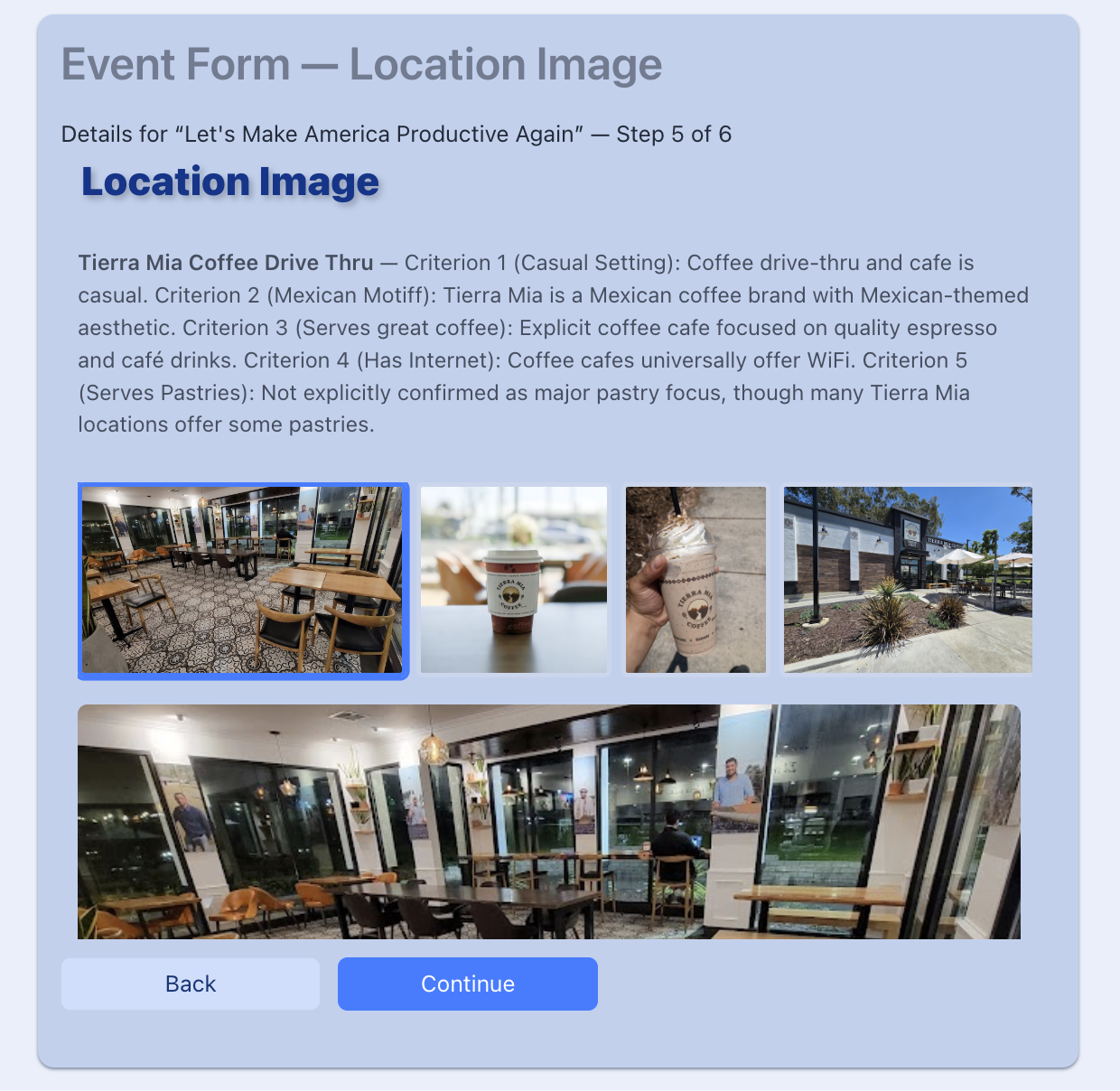

Browser (React)

Renders a full photo grid — user browses all available photos. No AI filtering applied; all Google Places photos shown as-is

Browser (Amigo)

Selects preferred photo from the grid

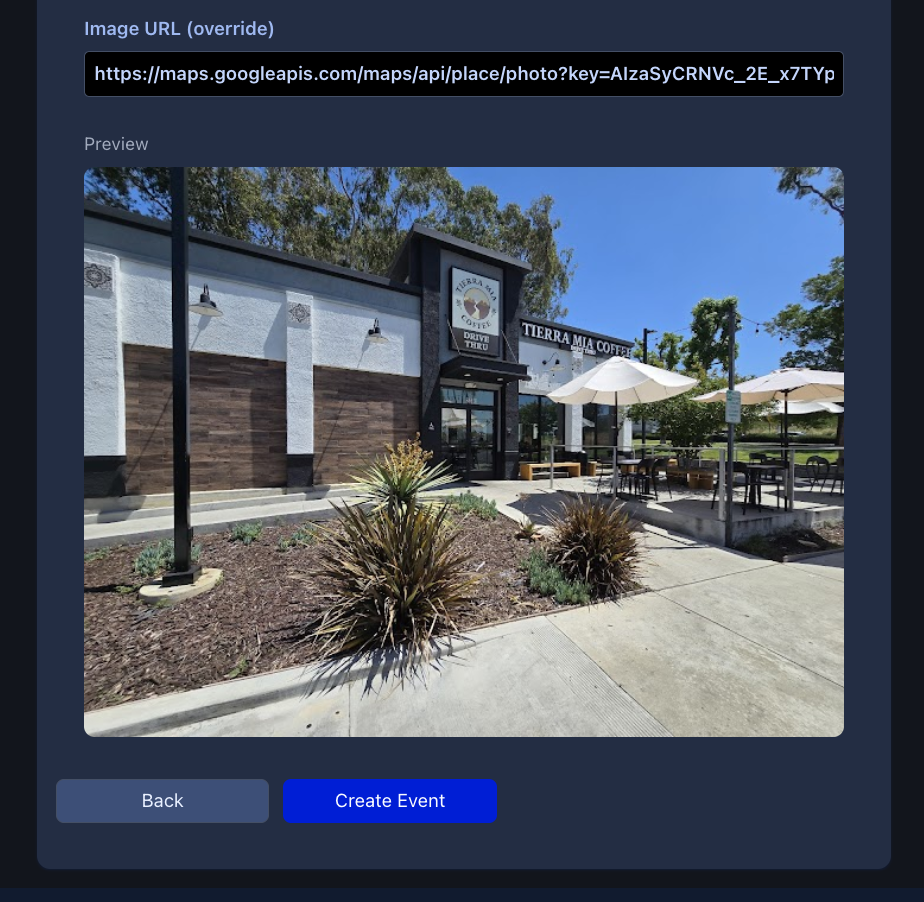

Browser → API

POST /store_location_image { photo_reference } — submits the chosen photo reference

API → Google CDN → Active Storage

Rails downloads the full-resolution image (1200px) from the Google CDN and attaches it to the EventLocation record via Active Storage

API (Background Job)

ProcessLocationImageJob resizes the image to 640×480 and saves the final image URL to the location record

6. Participant & Staff Management Flow

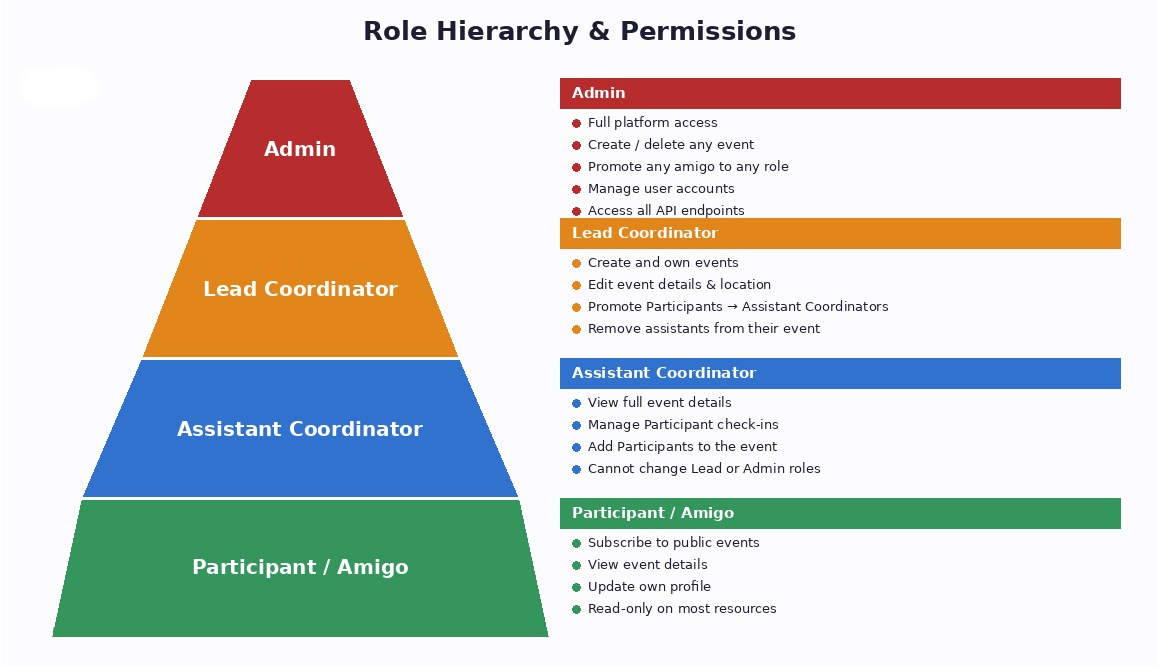

6.1 Role Hierarchy

Every relationship between an Amigo and an Event is represented by an EventAmigoConnector record. The connector carries a role enum and a status enum.

Layer

Technology

lead_coordinator (2)

Created automatically when an event is created. Full event management rights — can edit event, manage all roles, transfer lead.

assistant_coordinator (1)

Promoted from participant by the lead coordinator. Can edit event details and manage participant connectors but cannot change roles.

participant (0)

Any Amigo who subscribes to an event. Amigos with willing_to_help = true on their AmigoDetail profile are eligible for promotion.

6.2 Subscribing to an Event

Step

Actor

Action

Amigo → API

POST /api/v1/events/:id/event_amigo_connectors with amigo_id

API (EventPolicy)

manage_connectors? — allows lead, assistant, or self-join

API

Creates EventAmigoConnector with role: participant, status: pending

6.3 Promoting to Assistant Coordinator

In Edit Event Step 8, the lead coordinator sees three sections: Lead Coordinator (read-only), existing Assistant Coordinators (read-only), and Eligible Participants (checkboxes, limited to willing_to_help = true). Checking a box marks the participant 'will be promoted on save'. On form submit, onSubmitManagement fires after the event core save.

Step

Actor

Action

EventForm (Step 8)

Lead coordinator checks participant checkboxes; assistantCoordinatorIds state updates

Form submit

onSubmit saves event core first; if successful, onSubmitManagement is called

Browser → API

PATCH /api/v1/events/:id/event_amigo_connectors/:connector_id with { event_amigo_connector: { role: 'assistant_coordinator' } }

API (EventPolicy)

manage_roles? — requires lead_coordinator role (or lead_coordinator_id match on event row as fallback)

API (Events::ChangeRole)

Finds connector by amigo_id, updates role to assistant_coordinator

Browser

Navigates to Manage Events on completion; next form load shows promoted Amigo in Assistant Coordinators section

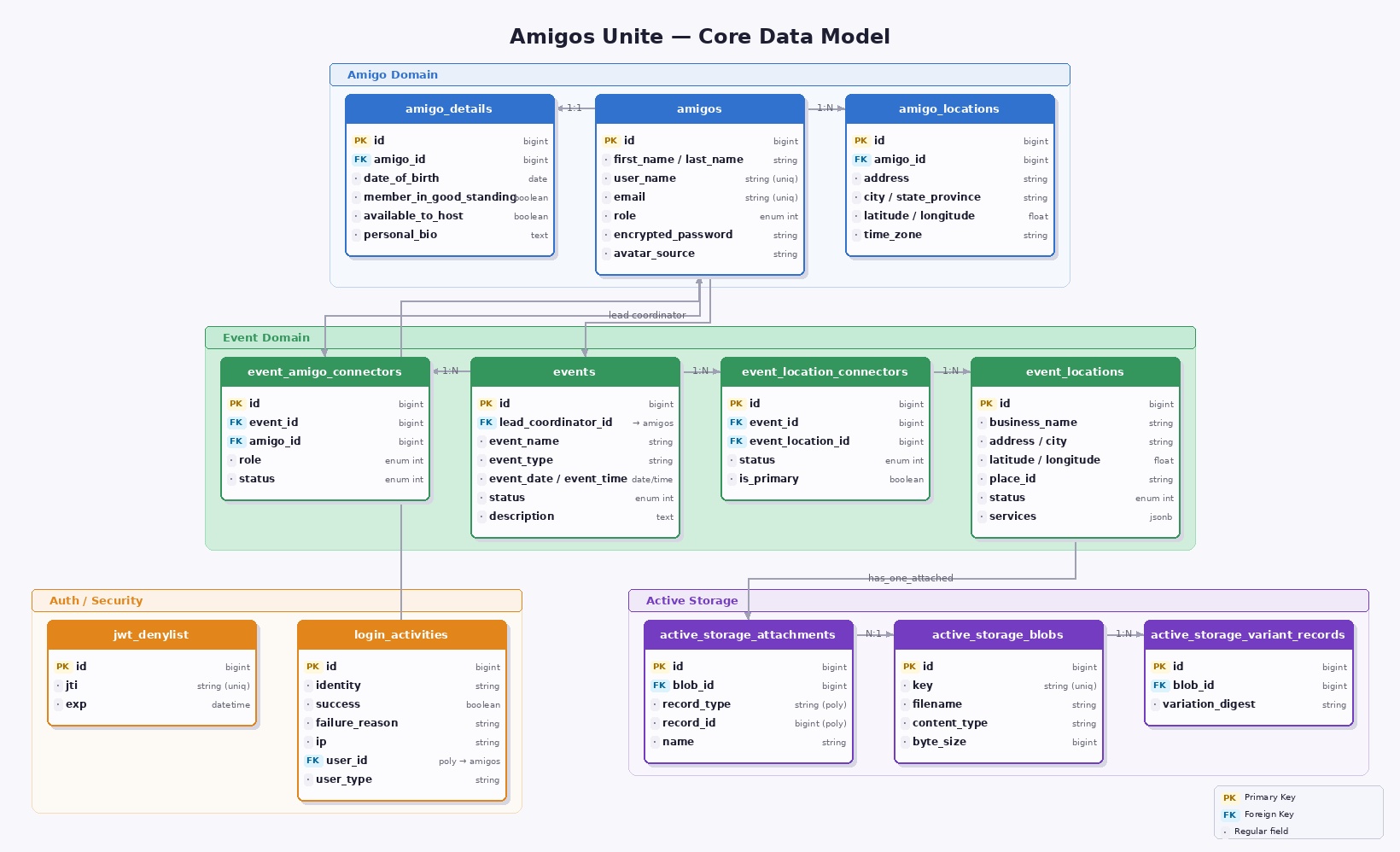

7. Core Data Model

The following are the principal ActiveRecord models and their relationships.

Layer

Technology

Amigo

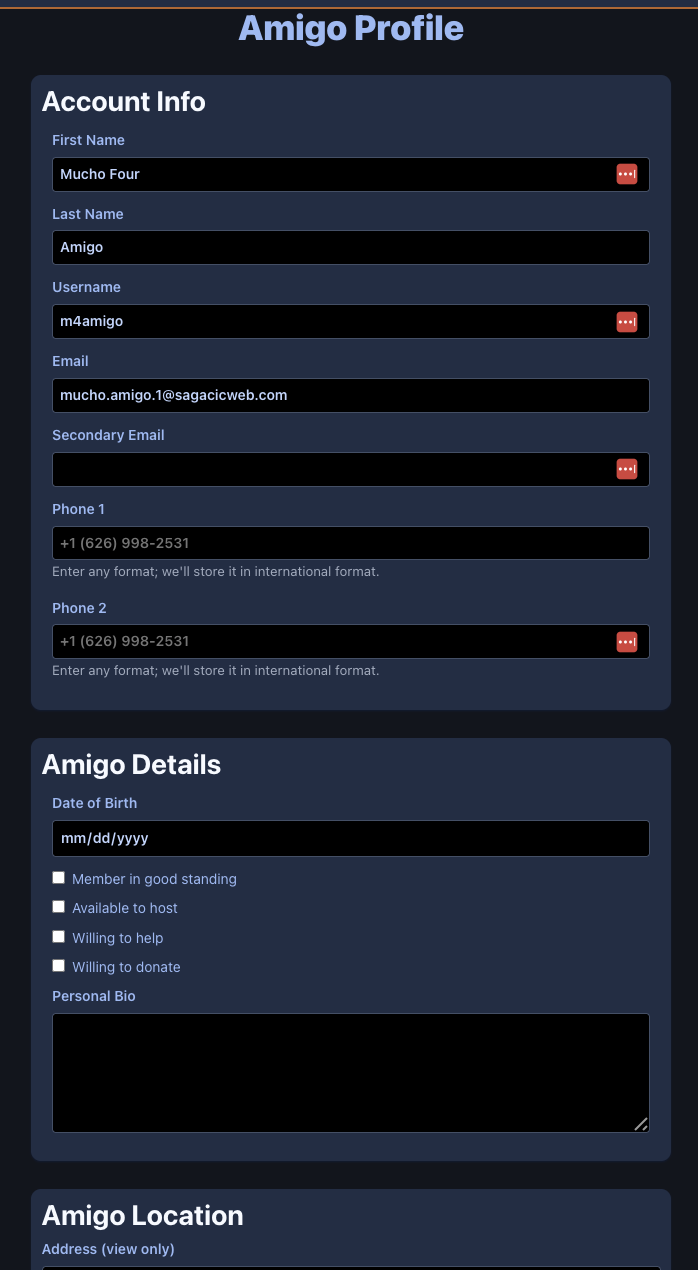

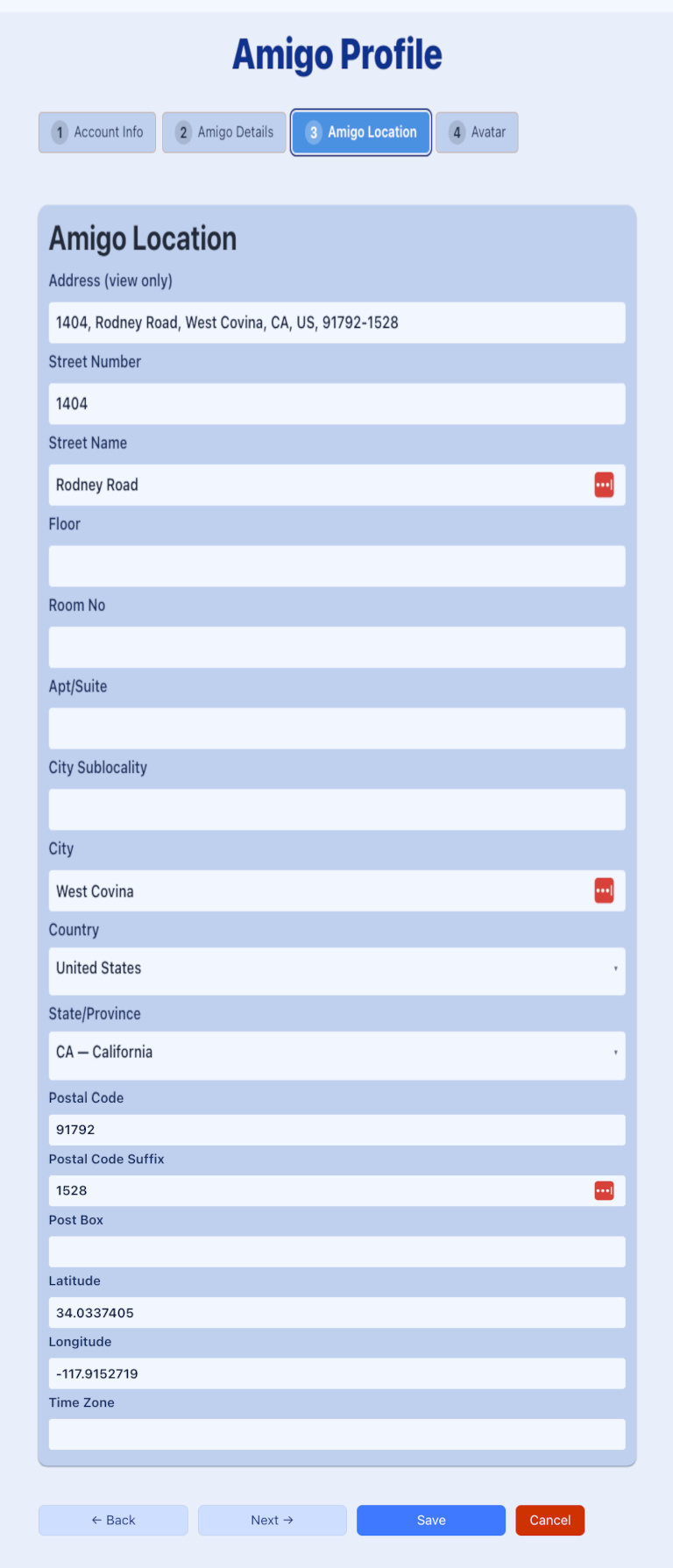

Core user record. Has one AmigoDetail (profile) and many AmigLocation records. Encrypted phone fields via Lockbox. Blind-indexed for search.

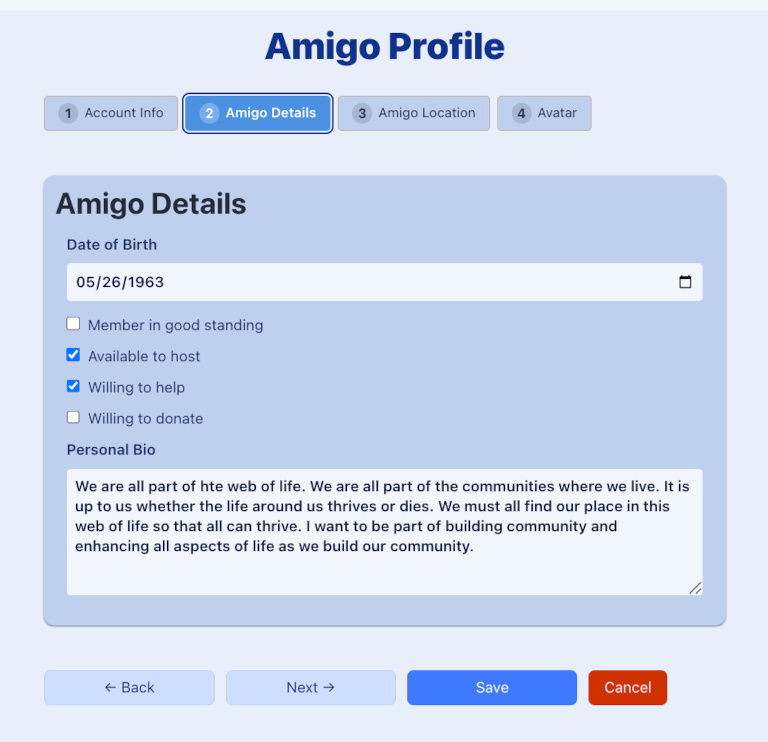

AmigoDetail

Extended profile: willing_to_help boolean (gates assistant coordinator eligibility), bio, avatar, social handles.

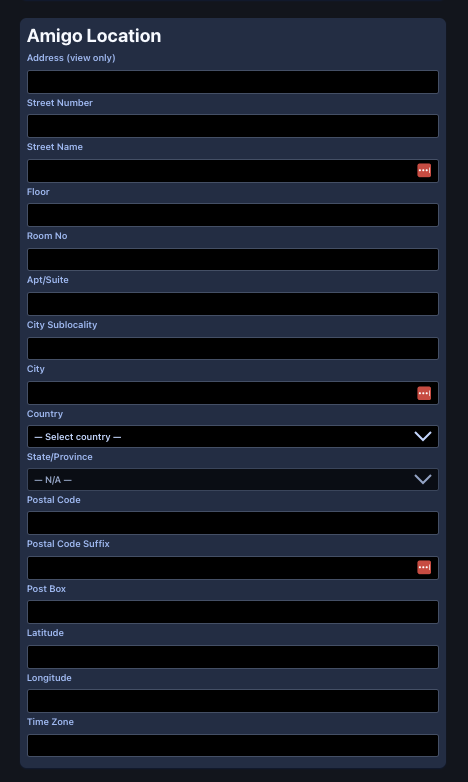

AmigoLocation

Venue record. Includes GeocodableWithFallback concern — auto-geocodes missing fields on save. Stores Google place_id, image_url (Active Storage).

AmigoLocationConnector

Join table between Amigo and AmigoLocation. Supports a primary_location flag.

Event

Core event record. belongs_to :lead_coordinator (Amigo). Has many EventAmigoConnectors and has one primary EventLocation through EventLocationConnector.

EventAmigoConnector

Join table between Event and Amigo. Carries role enum (participant, assistant_coordinator, lead_coordinator) and status enum (pending, confirmed, active, declined). Enforces single lead per event.

EventLocation

Venue record. Includes GeocodableWithFallback concern — auto-geocodes missing fields on save. Stores Google place_id, image_url (Active Storage), photo_reference.

EventLocationConnector

Join table between Event and EventLocation. Supports a primary_location flag.

8. Security Architecture

Security is applied in multiple layers across both the API and the deployment infrastructure.

Authentication & Tokens

JWT access tokens expire in 1 hour; signed with HS256 using Rails master key material
Refresh tokens stored in HTTP-only, Secure, SameSite=None cookies — not accessible to JavaScript
Devise jti_matcher invalidates refresh tokens on logout
AuthTrail logs every login attempt for audit and anomaly detection

CSRF Protection

ApplicationController sets CSRF-TOKEN cookie on every GET response
verify_csrf_token runs before all mutating API calls — compares cookie value to X-CSRF-Token header using constant-time comparison
Frontend Axios interceptor reads the cookie and injects the header automatically

Input Security

Strong Parameters (ActionController::Parameters) whitelists every attribute accepted by each controller
Sanitize gem strips unsafe HTML from user-supplied text fields
phonelib normalizes and validates all phone numbers to E.164 format
Active Storage Validations enforces file type and size limits on uploads
Clamby (ClamAV) virus-scans every uploaded file before attachment

Data Protection

Lockbox encrypts sensitive fields at rest using AES-256-GCM
Blind Index provides searchable encrypted columns without exposing plaintext
PostgreSQL data volume is never exposed to the host network; port 5432 is internal only

Network & Infrastructure

ufw limits inbound traffic to ports 22, 80, 443 only
API and frontend containers bind only to 127.0.0.1 — Nginx is the sole public-facing process
Rack::Attack rate-limits authentication endpoints and API paths per IP
TLS 1.2+ enforced via Nginx + Let's Encrypt; HTTP redirects to HTTPS
Docker images are built in GitHub Actions and pulled from ghcr.io — no source code on VPS

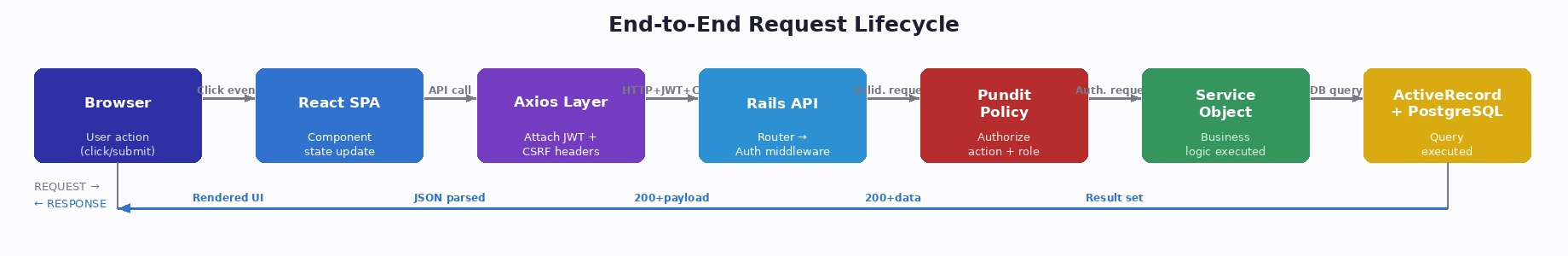

9. End-to-End Request Lifecycle

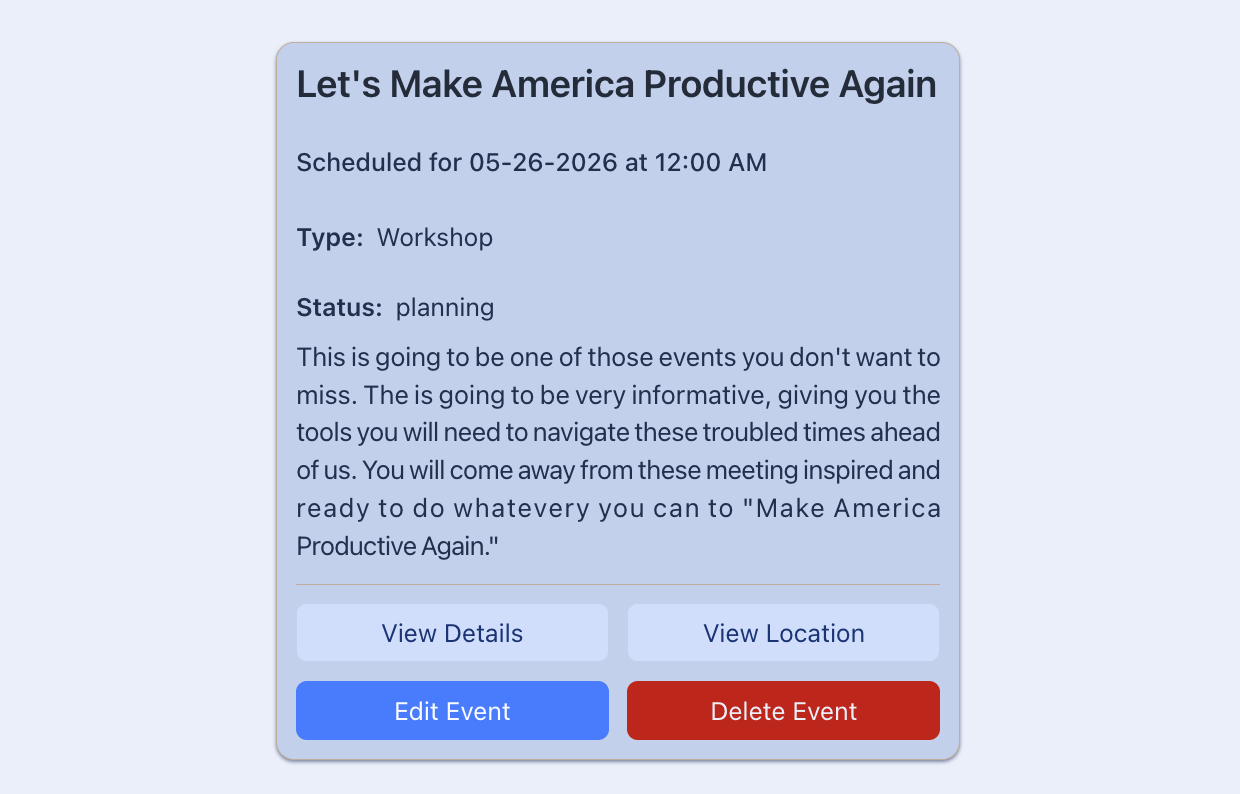

The following traces a single authenticated mutating request — for example, saving an edited event — from the browser through to the database and back.

Actor

Action

Browser (Axios)

Injects Authorization: Bearer <JWT> and X-CSRF-Token headers; sends PATCH https://amigosunite.org/api/v1/events/12

Nginx (host)

Terminates TLS; proxies /api/* to localhost:3001 (Puma container)

Rack::Attack

Checks per-IP rate limits; passes if within thresh

Rack CORS

alidates Origin header matches allowlist

ApplicationController

verify_csrf_token — compares X-CSRF-Token header to CSRF-TOKEN cookie

ApplicationController

uthenticate_amigo! — decodes JWT, loads Amigo from sub claim

EventsController#update

set_event loads Event.find(12); authorize_event! instantiates EventPolicy; update? returns true for lead or assistan

ActiveRecord transaction

event.update! runs; Events::UpsertPrimaryLocation called if location block present; GeocodableWithFallback geocodes any missing address fields before_validation

ActiveModelSerializer

EventSerializer renders Event + primary_event_location as JSON

Puma → Nginx → Browser

200 OK with JSON body; Axios promise resolves; React state updates

If step 6 fails (e.g. the JWT has expired), the Axios interceptor transparently posts to /api/v1/refresh_token, swaps in the new token, and retries the original PATCH — the calling code never sees the interruption.
